Texas Instruments
LMH6722QSD/NOPB
LMH6722QSD/NOPB
Regular price
$1.68 USD
Regular price
Sale price
$1.68 USD
Unit price
per
Couldn't load pickup availability

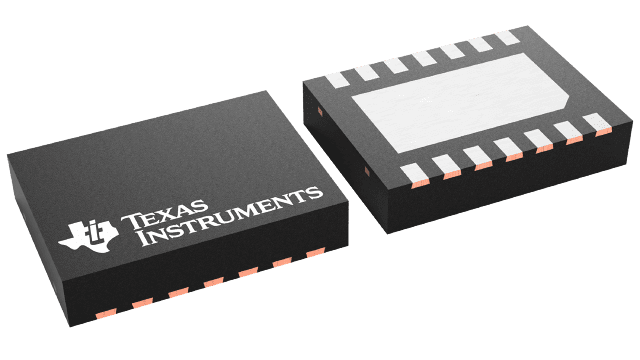

LMH6722QSD/NOPB Texas Instruments - Yeehing Electronics
Automotive, Quad Channel, Wideband Video Amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.41 |
| 100 — 249 | 3.596 |
| 250 — 999 | 2.826 |
| 1,000 + | 1.68 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-14 |
| Supply Voltage - Max | 12.5 V |
| Output Current per Channel | 70 mA |
| Number of Channels | 4 Channel |
| SR - Slew Rate | 1.8 kV/us |
| CMRR - Common Mode Rejection Ratio | 48 dB to 54 dB |
| Ib - Input Bias Current | 10 uA |
| Vos - Input Offset Voltage | 6 mV |
| Supply Voltage - Min | 8 V |
| Operating Supply Current | 5.6 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Shutdown | No Shutdown |
| Series | LMH6722-Q1 |
| Packaging | Reel |
| Height | 0.8 mm |
| Length | 4 mm |
| Product | Operational Amplifiers |
| Supply Type | Single, Dual |
| Technology | BiCOM |
| Width | 3 mm |
| Brand | Texas Instruments |
| Dual Supply Voltage | +/- 5 V |
| en - Input Voltage Noise Density | 3.4 nV/sqrt Hz |
| In - Input Noise Current Density | 1.2 pA/sqrt Hz |
| Maximum Dual Supply Voltage | +/- 6.25 V |
| Minimum Dual Supply Voltage | +/- 4 V |
| Operating Supply Voltage | 9 V, 12 V |
| Product Type | Op Amps - Operational Amplifiers |
| PSRR - Power Supply Rejection Ratio | 48 dB |
| Factory Pack Quantity | 1000 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.000907 oz |
For more information, please refer to datasheet
Documents
| LMH6722QSD/NOPB Datasheet |
More Information
The LMH6714/LMH6720/LMH6722 series combine Texas Instruments' VIP10 high speed complementary bipolar process with Texas Instruments' current feedback topology to produce a very high speed op amp. These amplifiers provide a 400MHz small signal bandwidth at a gain of +2V/V and a 1800V/μs slew rate while consuming only 5.6mA from ±5V supplies.
