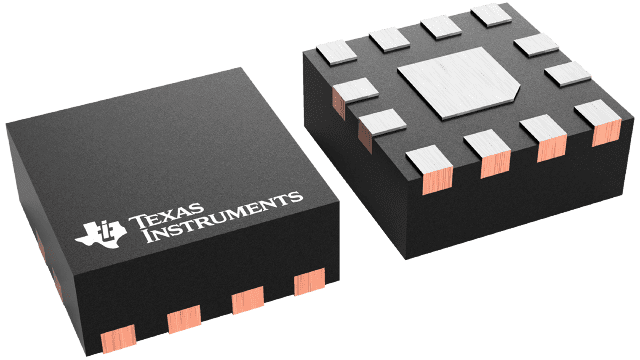

LMH9126IRRLR Texas Instruments - Yeehing Electronics

2.3-2.9 GHz differential to single-ended low-power amplifier with Integrated balun

Pricing (USD)

Quantity	Unit Price
1 — 99	2.404
100 — 249	2.106
250 — 999	1.477
1,000 +	0.83

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

LMH9126IRRLR Datasheet

More Information

The LMH9126 is high-performance, single-channel, differential input to single-ended output transmit RF gain block amplifier supporting 2.6-GHz center frequency band. The device is well suited to support requirements for the next generation 5G AAS or small cell applications while driving the input of a power amplifier (PA). The RF amplifier provides 18-dB typical gain with good linearity performance of 35-dBm output IP3, while maintaining less than 4-dB noise figure across the whole 1-dB bandwidth. The device is internally matched for 100-Ω differential input impedance providing easy interface with an RF-sampling or Zero-IF analog front-end (AFE) at the input. Also, the device is internally matched for 50-Ω single-ended output impedance required for easy interface with a post-amplifier, SAW filter, or PA.
