Description

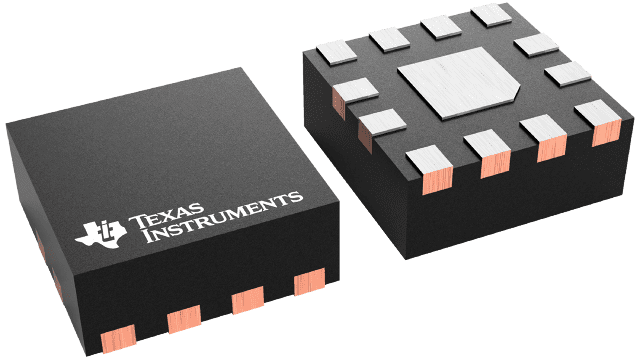

LMH9135IRRLR Texas Instruments - Yeehing Electronics
3.2 to 4.2 GHz differential to single-ended amplifier with integrated balun
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.404 |
| 100 — 249 | 2.106 |
| 250 — 999 | 1.477 |
| 1,000 + | 0.68 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| LMH9135IRRLR Datasheet |
More Information
LMH9135 are high-performance, single-channel, differential input to single-ended output transmit radio frequency (RF) gain block amplifiers that support 3.2 – 4.2 GHz frequency band. The device can support the requirements for next generation 5G active antenna systems (AAS) or small-cell applications while driving the input of a power amplifier (PA). The RF amplifier provides 18 dB typical gain with good linearity performance of +31.5 dBm Output IP3, while maintaining less than 4 dB noise figure across the whole 1 dB bandwidth. The device is internally matched for 100-Ω differential input impedance providing easy interface with an RF-sampling or Zero-IF analog front-end (AFE) at the input. Also, the device is internally matched for 50-Ω single-ended output impedance that is required to easily interface with a post-amplifier, surface acoustic wave (SAW) filter, or power amplifier (PA).
