Description

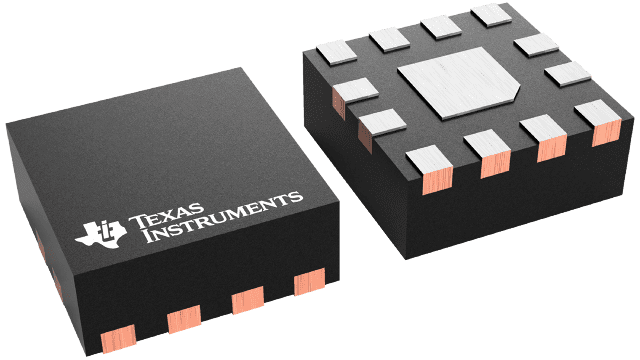

LMH9226IRRLR Texas Instruments - Yeehing Electronics
Single-ended to differential 2.3 - 2.9 GHz low-power ADC driver with integrated balun
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.115 |
| 100 — 249 | 1.853 |
| 250 — 999 | 1.299 |
| 1,000 + | 0.61 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| LMH9226IRRLR Datasheet |
More Information
The LMH9226 is high-performance, single-channel, single-ended, 50-Ω input to differential 50-Ω or 100-Ω output RF gain block amplifier supporting a 2.3-GHz to 2.9-GHz frequency band. The device is well suited to meet requirements for 5G m-MIMO or small cell base station applications. The device integrates the functionality of a single-ended input and output RF gain block followed by a passive balun, where the device is mainly used in the final stage of a receiver signal chain to drive the full-scale voltage of an analog-to-differential converter (ADC) differential input.
