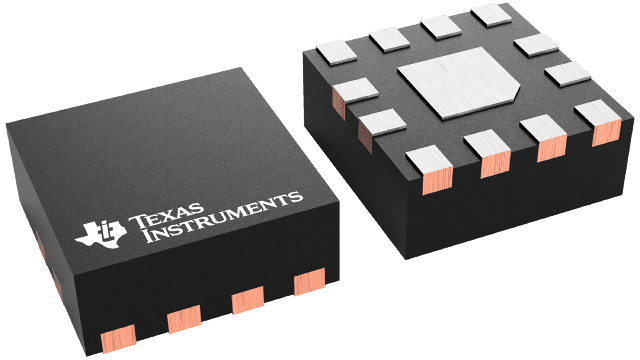

LMH9235IRRLR Texas Instruments - Yeehing Electronics

3.3 GHz to 4.2 GHz single-ended to differential amplifier with integrated balun

Pricing (USD)

Quantity	Unit Price
1 — 99	2.404
100 — 249	2.106
250 — 999	1.477
1,000 +	0.83

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

LMH9235IRRLR Datasheet

More Information

The LMH9235 device is a high-performance, single-channel, single-ended input to differential output receive RF gain block amplifier supporting 3.6 GHz center frequency band. The device is well suited to support requirements for the next generation 5G AAS or small cell applications where LNA gain is not sufficient to drive full-scale of an analog front-end (AFE). The RF amplifier provides 17 dB typical gain with good linearity performance of 34 dBm Output IP3, while maintaining about 3 dB noise figure across the whole 1 dB bandwidth. The device is internally matched for 50 Ω impedance at both the single-ended input as well as the differential output providing easy interface with an RF-sampling or Zero-IF analog front-end (AFE).
