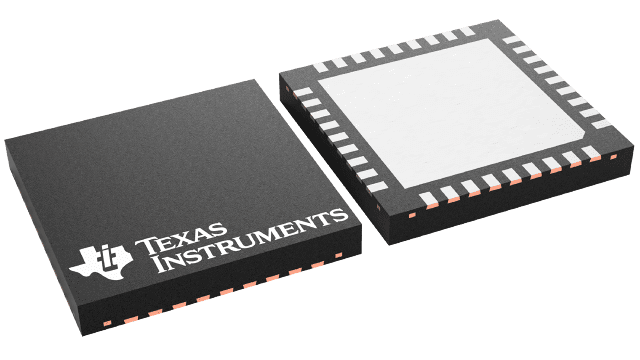

LMK00306SQ/NOPB Texas Instruments - Yeehing Electronics

3.1-GHz differential clock buffer/level translator with 6 configurable outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	7.316
100 — 249	5.964
250 — 999	4.688
1,000 +	2.78

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Clock Buffer
RoHS	Y
Series	LMK00306
Number of Outputs	7 Output
Maximum Input Frequency	3.1 GHz
Propagation Delay - Max	1550 ps
Supply Voltage - Max	3.45 V
Supply Voltage - Min	3.15 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	WQFN-36
Packaging	Reel
Output Type	HCSL, LVCMOS, LVDS, LVPECL
Brand	Texas Instruments
Max Output Freq	3100 MHz
Development Kit	LMK00306EVM/NOPB
Moisture Sensitive	Yes
Operating Supply Current	13.5 mA
Product Type	Clock Buffer
Factory Pack Quantity	1000
Subcategory	Clock & Timer ICs
Unit Weight	0.003841 oz

For more information, please refer to datasheet

Documents

LMK00306SQ/NOPB Datasheet

More Information

The LMK00306 is a 3-GHz, 6-output differential fanout buffer intended for high-frequency, low-jitter clock/data distribution and level translation. The input clock can be selected from two universal inputs or one crystal input. The selected input clock is distributed to two banks of 3 differential outputs and one LVCMOS output. Both differential output banks can be independently configured as LVPECL, LVDS, or HCSL drivers, or disabled. The LVCMOS output has a synchronous enable input for runt-pulse-free operation when enabled or disabled. The LMK00306 operates from a 3.3 V core supply and 3 independent 3.3 V/2.5 V output supplies.
