Texas Instruments

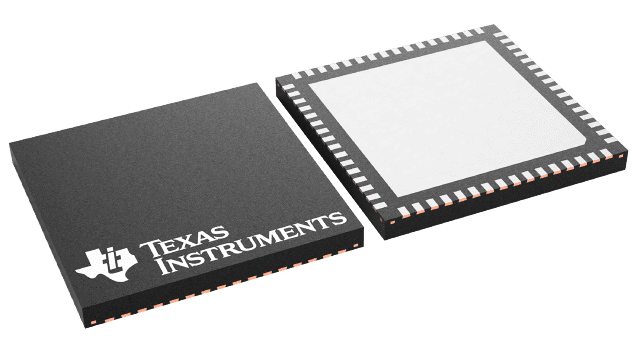

LMK03806BISQ/NOPB
LMK03806BISQ/NOPB
Regular price
$4.80 USD
Regular price
Sale price
$4.80 USD
Unit price
per
Couldn't load pickup availability
LMK03806BISQ/NOPB Texas Instruments - Yeehing Electronics
Ultra-low jitter clock generator with 14 outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 11.394 |
| 100 — 249 | 9.953 |
| 250 — 999 | 7.674 |
| 1,000 + | 4.80 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Clock Generators & Support Products |
| RoHS | Y |
| Series | LMK03806 |
| Max Output Freq | 2600 MHz |
| Number of Outputs | 14 Output |
| Operating Supply Voltage | 3.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-64 |
| Packaging | Reel |
| Brand | Texas Instruments |
| Input Level | LVPECL, LVDS, LVCMOS, Crystal |
| Output Level | LVCMOS, LVDS, LVPECL |
| Development Kit | LMK03806BEVAL |
| Moisture Sensitive | Yes |
| Product Type | Clock Generators |
| Factory Pack Quantity | 1000 |
| Subcategory | Clock & Timer ICs |
For more information, please refer to datasheet
Documents
| LMK03806BISQ/NOPB Datasheet |
More Information
The LMK03806 device is a high-performance, ultra low-jitter, multi-rate clock generator capable of synthesizing 8 different frequencies on 14 outputs at frequencies of up to 2.6 GHz. Each output clock is programmable in LVDS, LVPECL or LVCMOS format. The LMK03806 integrates a high-performance integer-N PLL, low-noise VCO, and programmable output dividers to generate multiple reference clocks for SONET, Ethernet, Fiber Channel, XAUI, Backplane, PCIe, SATA, and Network Processors from a low-cost crystal.
