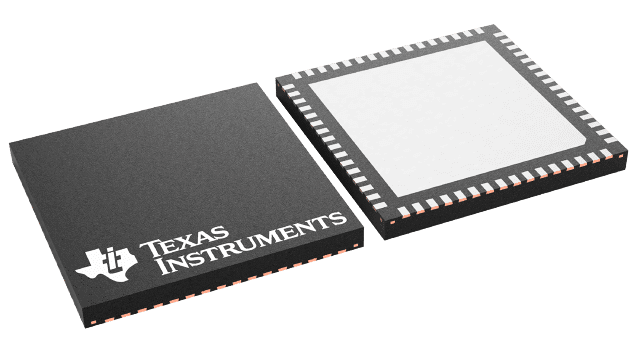

LMK03806BISQE/NOPB Texas Instruments - Yeehing Electronics
Ultra-low jitter clock generator with 14 outputs
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 11.394 |
100 — 249 | 9.953 |
250 — 999 | 7.674 |
1,000 + | 4.80 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Clock Generators & Support Products |
RoHS | Y |
Series | LMK03806 |
Max Output Freq | 2600 MHz |
Number of Outputs | 14 Output |
Operating Supply Voltage | 3.3 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | WQFN-64 |
Packaging | Reel |
Brand | Texas Instruments |
Input Level | LVPECL, LVDS, LVCMOS, Crystal |
Output Level | LVCMOS, LVDS, LVPECL |
Development Kit | LMK03806BEVAL |
Moisture Sensitive | Yes |
Product Type | Clock Generators |
Factory Pack Quantity | 250 |
Subcategory | Clock & Timer ICs |
Unit Weight | 0.007704 oz |
For more information, please refer to datasheet
Documents
LMK03806BISQE/NOPB Datasheet |
More Information
The LMK03806 device is a high-performance, ultra low-jitter, multi-rate clock generator capable of synthesizing 8 different frequencies on 14 outputs at frequencies of up to 2.6 GHz. Each output clock is programmable in LVDS, LVPECL or LVCMOS format. The LMK03806 integrates a high-performance integer-N PLL, low-noise VCO, and programmable output dividers to generate multiple reference clocks for SONET, Ethernet, Fiber Channel, XAUI, Backplane, PCIe, SATA, and Network Processors from a low-cost crystal.
