Texas Instruments
LMK04208NKDT
LMK04208NKDT
Regular price
$4.80 USD
Regular price
Sale price
$4.80 USD
Unit price
per
Couldn't load pickup availability
LMK04208NKDT Texas Instruments - Yeehing Electronics
Ultra low-noise clock jitter cleaner with 6 programmable outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 11.376 |
| 100 — 249 | 9.937 |
| 250 — 999 | 7.662 |
| 1,000 + | 4.80 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Clock Synthesizer / Jitter Cleaner |
| RoHS | Y |
| Series | LMK04208 |
| Number of Outputs | 7 Output |
| Output Level | LVCMOS, LVDS, LVPECL |
| Max Output Freq | 3072 MHz |
| Input Level | LVCMOS, LVDS, LVPECL |
| Maximum Input Frequency | 3.1 GHz |
| Supply Voltage - Max | 3.45 V |
| Supply Voltage - Min | 3.15 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |

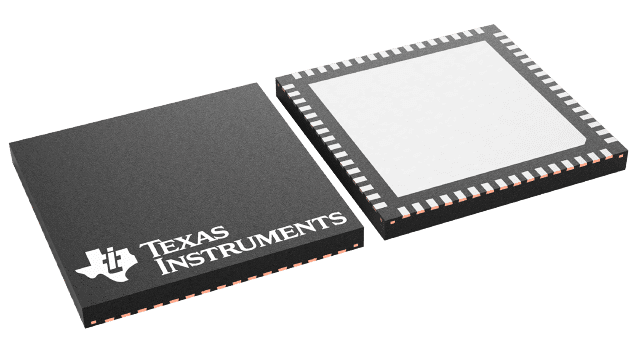

| Package / Case | WQFN-64 |
| Packaging | Reel |
| Features | Holdover mode, Int. xtal oscillator, Manual/auto switch, SPI, uWire |
| Product | Clock Jitter Cleaners |
| Type | Dual Loop PLLs |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 445 mA |
| Product Type | Clock Synthesizer / Jitter Cleaner |
| Factory Pack Quantity | 250 |
| Subcategory | Clock & Timer ICs |
| Unit Weight | 0.001411 oz |
For more information, please refer to datasheet
Documents
| LMK04208NKDT Datasheet |
More Information
The LMK04208 is a high performance clock conditioner with superior clock jitter cleaning, generation, and distribution with advanced features to meet next generation system requirements. The dual loop PLLatinum™ architecture is capable of 111 fs, RMS jitter (12 kHz to 20 MHz) using a low-noise VCXO module or sub-200 fs rms jitter (12 kHz to 20 MHz) using a low cost external crystal and varactor diode.
