LMK04616ZCRR Texas Instruments - Yeehing Electronics

Ultra low-noise and low power JESD204B compliant clock jitter cleaner

Pricing (USD)

Quantity	Unit Price
1 — 99	31.553
100 — 249	27.562
250 — 999	21.251
1,000 +	13.31

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Clock Synthesizer / Jitter Cleaner
RoHS	Y
Series	LMK0461x
Number of Outputs	16 Output
Output Level	HSCL, HSDS, LVDS, LVPECL
Max Output Freq	6200 MHz
Input Level	LVCMOS, LVDS, LVPECL
Maximum Input Frequency	600 MHz
Supply Voltage - Max	3.465 V
Supply Voltage - Min	1.7 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT

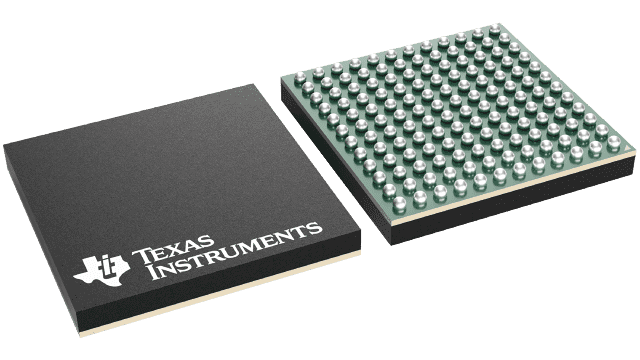

Package / Case	NFBGA-144
Packaging	Reel
Features	105C PCB temp, Holdover mode, JESD204B SYSREF, JESD204B SYSREF Generation, Jitter Cleaner/Clock Gen
Product	Clock Jitter Cleaners
Type	Dual Loop PLLs
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Current	22.5 mA
Product Type	Clock Synthesizer / Jitter Cleaner
Factory Pack Quantity	1000
Subcategory	Clock & Timer ICs

For more information, please refer to datasheet

Documents

LMK04616ZCRR Datasheet

More Information

The LMK0461x device family is the industry’s highest performance and lowest power jitter cleaner with JESD204B support. The 16 clock outputs can be configured to drive eight JESD204B converters or other logic devices using device and SYSREF clocks. The 17th output can be configured to provide a signal from PLL2 or a copy from the external VCXO.
