LMK04806BISQ/NOPB Texas Instruments - Yeehing Electronics

Low-noise clock jitter cleaner with dual cascaded PLLs and integrated 2.5-GHz VCO

Pricing (USD)

Quantity	Unit Price
1 — 99	16.776
100 — 249	14.654
250 — 999	11.299
1,000 +	7.07

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Clock Synthesizer / Jitter Cleaner
RoHS	Y
Series	LMK04806
Number of Outputs	14 Output
Output Level	LVCMOS, LVDS, LVPECL
Max Output Freq	2600 MHz
Input Level	LVCMOS, LVDS, LVPECL
Supply Voltage - Max	3.45 V
Supply Voltage - Min	3.15 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT

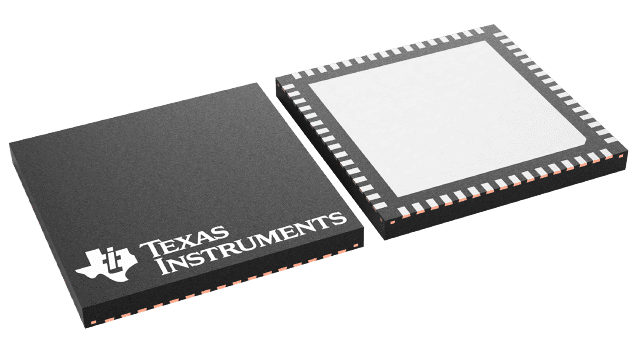

Package / Case	WQFN-64
Packaging	Reel
Features	Holdover mode, Int. xtal oscillator, Manual/auto switch, SPI, uWire
Height	0.8 mm
Length	9 mm
Width	9 mm
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Voltage	3.15 V to 3.45 V
Product Type	Clock Synthesizer / Jitter Cleaner
Factory Pack Quantity	1000
Subcategory	Clock & Timer ICs

For more information, please refer to datasheet

Documents

LMK04806BISQ/NOPB Datasheet

More Information

The LMK0480x family is the industry’s highest performance clock conditioner with superior clock jitter cleaning, generation, and distribution with advanced features to meet next generation system requirements. The dual loop PLLatinum architecture is capable of 111 fs rms jitter (12 kHz to 20 MHz) using a low noise VCXO module or sub-200 fs rms jitter (12 kHz to 20 MHz) using a low cost external crystal and varactor diode.
