LMK04806BISQX/NOPB


YeeHing #: Y003-LMK04806BISQX/NOPB
Inventory: 2000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LMK04806BISQX/NOPB Texas Instruments - Yeehing Electronics

Low-noise clock jitter cleaner with dual cascaded PLLs and integrated 2.5-GHz VCO

Pricing (USD)

Quantity Unit Price
1 — 99 13.981
100 — 249 12.212
250 — 999 9.416
1,000 + 5.90

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Clock Synthesizer / Jitter Cleaner
RoHS Y
Series LMK04806
Number of Outputs 14 Output
Output Level LVCMOS, LVDS, LVPECL
Max Output Freq 2600 MHz
Input Level LVCMOS, LVDS, LVPECL
Supply Voltage - Max 3.45 V
Supply Voltage - Min 3.15 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT

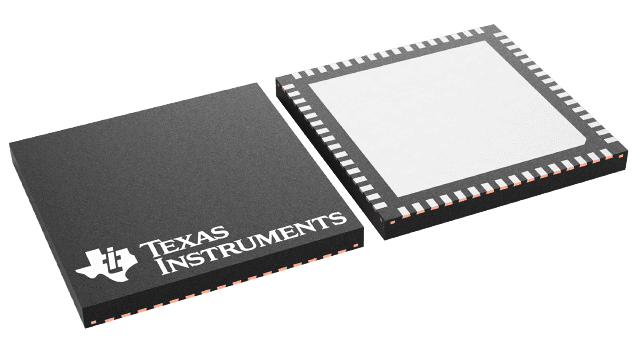

Package / Case WQFN-64
Packaging Reel
Features Holdover mode, Int. xtal oscillator, Manual/auto switch, SPI, uWire
Height 0.8 mm
Length 9 mm
Width 9 mm
Brand Texas Instruments
Moisture Sensitive Yes
Operating Supply Voltage 3.15 V to 3.45 V
Product Type Clock Synthesizer / Jitter Cleaner
Factory Pack Quantity 2000
Subcategory Clock & Timer ICs

For more information, please refer to datasheet

Documents

LMK04806BISQX/NOPB Datasheet

More Information

The LMK0480x family is the industry’s highest performance clock conditioner with superior clock jitter cleaning, generation, and distribution with advanced features to meet next generation system requirements. The dual loop PLLatinum architecture is capable of 111 fs rms jitter (12 kHz to 20 MHz) using a low noise VCXO module or sub-200 fs rms jitter (12 kHz to 20 MHz) using a low cost external crystal and varactor diode.
