Description

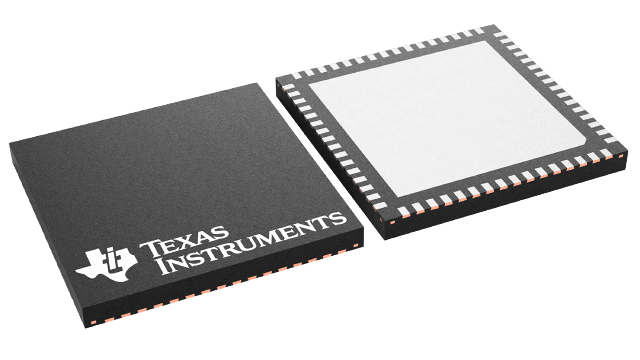

LMK04808BISQE/NOPB Texas Instruments - Yeehing Electronics
Low-noise clock jitter cleaner with dual loop PLLs and integrated 2.9-GHz VCO
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 16.776 |
100 — 249 | 14.654 |
250 — 999 | 11.299 |
1,000 + | 7.07 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Clock Synthesizer / Jitter Cleaner |
RoHS | Y |
Series | LMK04808 |
Number of Outputs | 14 Output |
Output Level | LVCMOS, LVDS, LVPECL |
Max Output Freq | 3072 MHz |
Input Level | LVCMOS, LVDS, LVPECL |
Supply Voltage - Max | 3.45 V |
Supply Voltage - Min | 3.15 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | WQFN-64 |
Packaging | Reel |
Features | uWire, SPI, Holdover mode, Manual/auto switch, Int. xtal oscillator |
Height | 0.8 mm |
Length | 9 mm |
Width | 9 mm |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Operating Supply Current | 505 mA |
Operating Supply Voltage | 3.15 V to 3.45 V |
Product Type | Clock Synthesizer / Jitter Cleaner |
Factory Pack Quantity | 250 |
Subcategory | Clock & Timer ICs |
Unit Weight | 0.007704 oz |
For more information, please refer to datasheet
Documents
LMK04808BISQE/NOPB Datasheet |
More Information
The LMK0480x family is the industrys highest performance clock conditioner with superior clock jitter cleaning, generation, and distribution with advanced features to meet next generation system requirements. The dual loop PLLatinum architecture is capable of 111 fs rms jitter (12 kHz to 20 MHz) using a low noise VCXO module or sub-200 fs rms jitter (12 kHz to 20 MHz) using a low cost external crystal and varactor diode.
