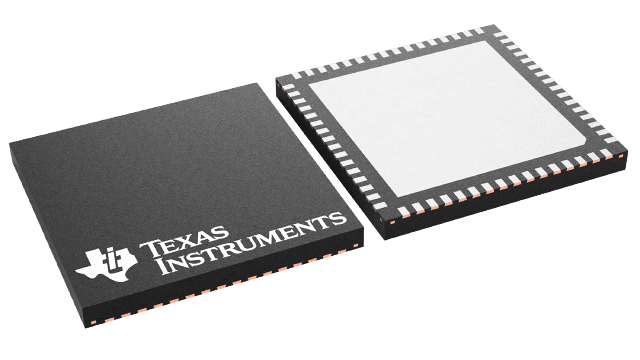

LMK04816BISQE/NOPB Texas Instruments - Yeehing Electronics
Three input low-noise clock jitter cleaner with dual loop PLLs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 12.81 |
| 100 — 249 | 11.19 |
| 250 — 999 | 8.628 |
| 1,000 + | 5.40 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Clock Synthesizer / Jitter Cleaner |
| RoHS | Y |
| Series | LMK04816 |
| Number of Outputs | 12 Output |
| Output Level | LVCMOS, LVDS, LVPECL |
| Max Output Freq | 2600 MHz |
| Input Level | LVCMOS, LVDS, LVPECL |
| Maximum Input Frequency | 3100 MHz |
| Supply Voltage - Max | 3.45 V |
| Supply Voltage - Min | 3.15 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-64 |
| Packaging | Reel |
| Features | Holdover mode, Int. xtal oscillator, Manual/auto switch, SPI, uWire |
| Brand | Texas Instruments |
| Development Kit | LMK04816BEVAL/NOPB |
| Moisture Sensitive | Yes |
| Operating Supply Current | 505 mA |
| Operating Supply Voltage | 3.15 V to 3.45 V |
| Pd - Power Dissipation | 100 uW |
| Product Type | Clock Synthesizer / Jitter Cleaner |
| Factory Pack Quantity | 250 |
| Subcategory | Clock & Timer ICs |
| Unit Weight | 0.007704 oz |
For more information, please refer to datasheet
Documents
| LMK04816BISQE/NOPB Datasheet |
More Information
The LMK04816 device is the industrys highest performance clock conditioner with superior clock jitter cleaning, generation, and distribution with advanced features to meet next generation system requirements. The dual-loop PLLATINUM architecture enables 111-fs RMS jitter (12 kHz to 20 MHz) using a low-noise VCXO module or sub-200-fs RMS jitter (12 kHz to 20 MHz) using a low-cost external crystal and varactor diode.
