Texas Instruments

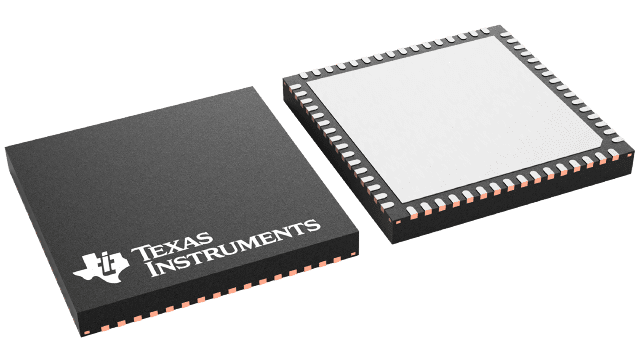

LMK05028RGCT
LMK05028RGCT
Regular price
$11.87 USD
Regular price
Sale price
$11.87 USD
Unit price
per
Couldn't load pickup availability
LMK05028RGCT Texas Instruments - Yeehing Electronics
Low-jitter dual-channel network synchronizer clock
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 28.154 |
| 100 — 249 | 24.592 |
| 250 — 999 | 18.961 |
| 1,000 + | 11.87 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Clock Generators & Support Products |
| RoHS | Y |
| Series | LMK05028 |
| Type | Clock Synchronizers |
| Maximum Input Frequency | 750 MHz |
| Max Output Freq | 750 MHz |
| Number of Outputs | 8 Output |
| Duty Cycle - Max | 60 % |
| Operating Supply Voltage | 3.3 V |
| Operating Supply Current | 40 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-64 |
| Packaging | Reel |
| Product | Network Clock Synchronizers |
| Brand | Texas Instruments |
| Development Kit | LMK05028EVM |
| Jitter | 150 fs |
| Moisture Sensitive | Yes |
| Product Type | Clock Generators |
| Factory Pack Quantity | 250 |
| Subcategory | Clock & Timer ICs |
| Supply Voltage - Max | 3.465 V |
| Supply Voltage - Min | 3.135 V |
| Unit Weight | 0.006963 oz |
For more information, please refer to datasheet
Documents
| LMK05028RGCT Datasheet |
More Information
The LMK05028 is a high-performance network synchronizer clock device that provides jitter cleaning, clock generation, advanced clock monitoring, and superior hitless switching performance to meet the stringent timing requirements of communications infrastructure and industrial applications. The devices low jitter and high PSNR reduce bit error rates (BER) in high-speed serial links.
