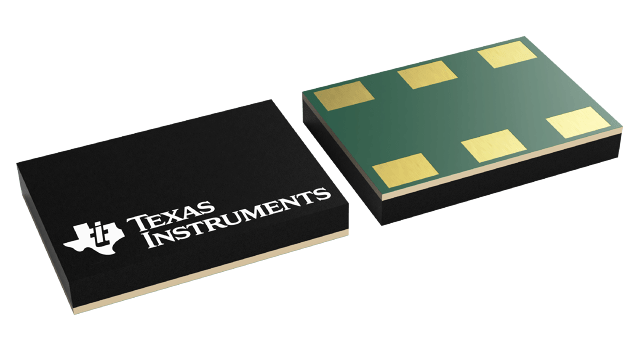

LMK60A0-148M35SIAR Texas Instruments - Yeehing Electronics

148.352-MHz, LVDS, high-performance, low jitter, differential oscillator

Pricing (USD)

Quantity	Unit Price
1 — 99	8.74
100 — 249	7.125
250 — 999	5.6
1,000 +	3.32

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Standard Clock Oscillators
Product Type	Clock Oscillators
Package / Case	QFM-6
Frequency	148.5 MHz
Frequency Stability	25 PPM
Operating Supply Voltage	3.3 V
Supply Voltage - Min	3.135 V
Supply Voltage - Max	3.465 V
Output Format	LVDS
Termination Style	SMD/SMT
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	7.1 mm
Width	5.1 mm
Height	1.15 mm
Series	LMK60A0-148351
Packaging	Reel
Current Rating	152 mA
Type	High Performance Low Jitter Oscillator
Brand	Texas Instruments
Duty Cycle - Max	55 %
Mounting Style	SMD/SMT
Factory Pack Quantity	2500
Subcategory	Oscillators

For more information, please refer to datasheet

Documents

LMK60A0-148M35SIAR Datasheet

More Information

The LMK60XX device is a low jitter oscillator that generates a commonly used reference clock. The device is pre-programmed in factory to support any reference clock frequency; supported output formats are LVPECL, and LVDS up to 800 MHz, and HCSL up to 400 MHz. Internal power conditioning provide excellent power supply ripple rejection (PSRR), reducing the cost and complexity of the power delivery network. The device operates from a single 3.3-V ±5% supply.
