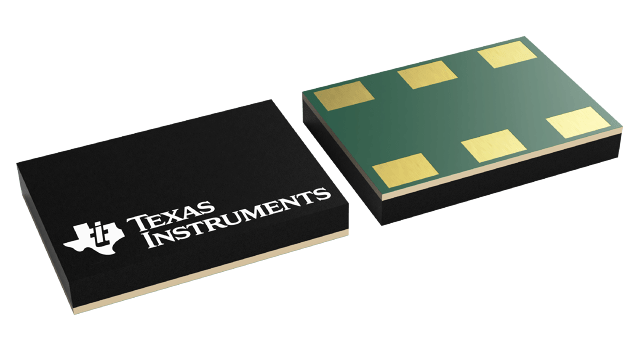

LMK60E0-156257SIAT Texas Instruments - Yeehing Electronics
156.257-MHz, LVPECL, ±25 ppm, high-performance, low-jitter oscillator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 9.462 |
| 100 — 249 | 8.265 |
| 250 — 999 | 6.373 |
| 1,000 + | 3.99 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Standard Clock Oscillators |
| RoHS | Y |
| Product Type | Clock Oscillators |
| Package / Case | QFM-6 |
| Frequency | 156.257 MHz |
| Frequency Stability | 25 PPM |
| Load Capacitance | 2 pF |
| Operating Supply Voltage | 3.3 V |
| Supply Voltage - Min | 3.135 V |
| Supply Voltage - Max | 3.465 V |
| Output Format | LVPECL |
| Termination Style | SMD/SMT |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Length | 7 mm |
| Width | 5 mm |
| Height | 1.15 mm |
| Series | LMK60E0-156257 |
| Packaging | Reel |
| Current Rating | 162 mA |
| Type | Low Jitter Crystal Oscillator |
| Brand | Texas Instruments |
| Duty Cycle - Max | 55 % |
| Mounting Style | SMD/SMT |
| Moisture Sensitive | Yes |
| Factory Pack Quantity | 250 |
| Subcategory | Oscillators |
For more information, please refer to datasheet
Documents
| LMK60E0-156257SIAT Datasheet |
More Information
The LMK60XX device is a low jitter oscillator that generates a commonly used reference clock. The device is pre-programmed in factory to support any reference clock frequency; supported output formats are LVPECL, and LVDS up to 800 MHz, and HCSL up to 400 MHz. Internal power conditioning provide excellent power supply ripple rejection (PSRR), reducing the cost and complexity of the power delivery network. The device operates from a single 3.3-V ±5% supply.
