Texas Instruments
LMK60E0-212M50SIAR
LMK60E0-212M50SIAR
Regular price
$3.32 USD
Regular price
Sale price
$3.32 USD
Unit price
per
Couldn't load pickup availability

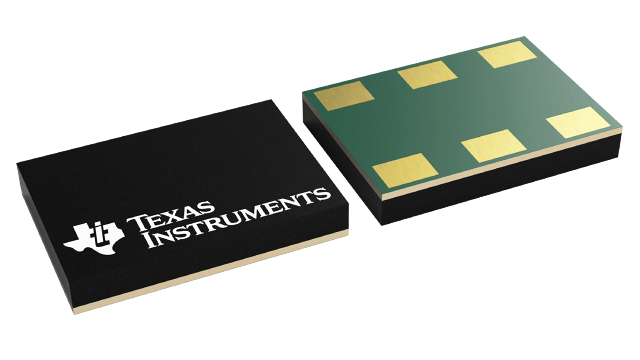

LMK60E0-212M50SIAR Texas Instruments - Yeehing Electronics
212.5-MHz, LVPECL, ±25 ppm, high-performance, low-jitter oscillator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.74 |
| 100 — 249 | 7.125 |
| 250 — 999 | 5.6 |
| 1,000 + | 3.32 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Standard Clock Oscillators |
| RoHS | Y |
| Product Type | Clock Oscillators |
| Package / Case | QFM-6 |
| Frequency | 212.5 MHz |
| Frequency Stability | 25 PPM |
| Load Capacitance | 2 pF |
| Operating Supply Voltage | 3.3 V |
| Supply Voltage - Min | 3.135 V |
| Supply Voltage - Max | 3.465 V |
| Output Format | LVPECL |
| Termination Style | SMD/SMT |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Length | 7 mm |
| Width | 5 mm |
| Series | LMK60E0-212M |
| Packaging | Reel |
| Current Rating | 95 mA |
| Type | High Performance Low Jitter Oscillator |
| Brand | Texas Instruments |
| Duty Cycle - Max | 55 % |
| Mounting Style | SMD/SMT |
| Moisture Sensitive | Yes |
| Factory Pack Quantity | 2500 |
| Subcategory | Oscillators |
For more information, please refer to datasheet
Documents
| LMK60E0-212M50SIAR Datasheet |
More Information
The LMK60EX is a family of low jitter oscillators that generate a commonly used reference clock. The device is pre-programmed in factory to support any reference clock frequency; supported output formats are LVPECL, LVDS, and HCSL up to 400 MHz. Internal power conditioning provide excellent power supply ripple rejection (PSRR), reducing the cost and complexity of the power delivery network. The device operates from a single 3.3-V ±5% supply.
