Texas Instruments
LMK61E0-155M52SIAR
LMK61E0-155M52SIAR
Regular price
$2.78 USD
Regular price
Sale price
$2.78 USD
Unit price
per
Couldn't load pickup availability

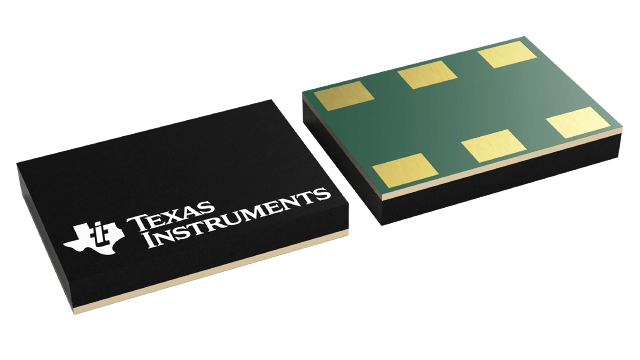

LMK61E0-155M52SIAR Texas Instruments - Yeehing Electronics
155.52-MHz, LVPECL ±25 ppm, ultra-low jitter, standard differential oscillator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.303 |
| 100 — 249 | 5.954 |
| 250 — 999 | 4.679 |
| 1,000 + | 2.78 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Standard Clock Oscillators |
| Product Type | Clock Oscillators |
| Package / Case | QFM-6 |
| Frequency | 155.52 MHz |
| Frequency Stability | 25 PPM |
| Load Capacitance | 2 pF |
| Operating Supply Voltage | 3.3 V |
| Supply Voltage - Min | 3.135 V |
| Supply Voltage - Max | 3.465 V |
| Output Format | LVPECL |
| Termination Style | SMD/SMT |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Length | 7.1 mm |
| Width | 5.1 mm |
| Height | 1.15 mm |
| Series | LMK61E0-155M |
| Packaging | Reel |
| Current Rating | 162 mA |
| Type | High Performance Ultra Low Jitter Oscillator |
| Brand | Texas Instruments |
| Duty Cycle - Max | 55 % |
| Mounting Style | SMD/SMT |
| Factory Pack Quantity | 2500 |
| Subcategory | Oscillators |
For more information, please refer to datasheet
Documents
| LMK61E0-155M52SIAR Datasheet |
More Information
The LMK61XX is an ultra-low jitter oscillator that generates a commonly used reference clock. The device is pre-programmed in factory to support any reference clock frequency; supported output formats are LVPECL up to 1 GHz, LVDS up to 900 MHz, and HCSL up to 400 MHz. Internal power conditioning provide excellent power supply ripple rejection (PSRR), reducing the cost and complexity of the power delivery network. The device operates from a single 3.3 V ± 5% supply.
