Texas Instruments
LMK61E0M-SIAT
LMK61E0M-SIAT
Regular price
$9.53 USD
Regular price
Sale price
$9.53 USD
Unit price
per
Couldn't load pickup availability

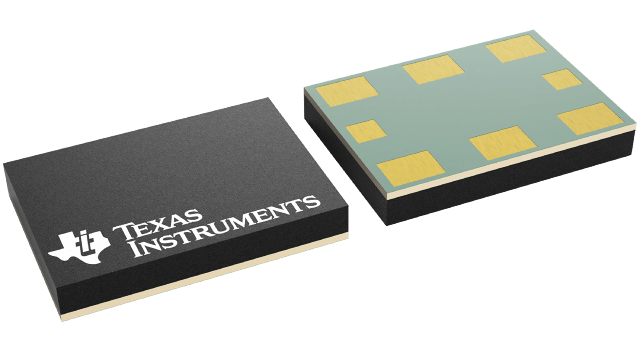

LMK61E0M-SIAT Texas Instruments - Yeehing Electronics
LVCMOS ultra-low jitter programmable oscillator with internal EEPROM
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 22.603 |
| 100 — 249 | 19.743 |
| 250 — 999 | 15.223 |
| 1,000 + | 9.53 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Programmable Oscillators |
| RoHS | Y |
| Package / Case | QFM-8 |
| Frequency | 200 MHz |
| Frequency Stability | 25 PPM |
| Load Capacitance | 2 pF |
| Operating Supply Voltage | 3.3 V |
| Supply Voltage - Min | 3.135 V |
| Supply Voltage - Max | 3.465 V |
| Output Format | LVCMOS |
| Termination Style | Solder Pad |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Length | 7 mm |
| Width | 5 mm |
| Height | 1.15 mm |
| Series | LMK61E0M |
| Packaging | Reel |
| Current Rating | 140 mA |
| Features | Standard, 7x5mm |
| Type | Programmable Oscillator |
| Brand | Texas Instruments |
| Duty Cycle - Max | 55 % |
| Mounting Style | SMD/SMT |
| Moisture Sensitive | Yes |
| Product Type | Programmable Oscillators |
| Factory Pack Quantity | 250 |
| Subcategory | Oscillators |
For more information, please refer to datasheet
Documents
| LMK61E0M-SIAT Datasheet |
More Information
The LMK61E0 family of ultra-low jitter PLLatinumTM programmable oscillators use fractional-N frequency synthesizers with integrated VCOs to generate commonly used reference clocks. The LMK61E0M supports 3.3-V LVCMOS outputs. The device features self start-up from on-chip EEPROM to generate a factory programmed default output frequency, or the device registers and EEPROM settings are fully programmable in-system through I2C serial interface. The device provides fine and coarse frequency margining control through I2C serial interface, making it a digitally-controlled oscillator (DCXO).
