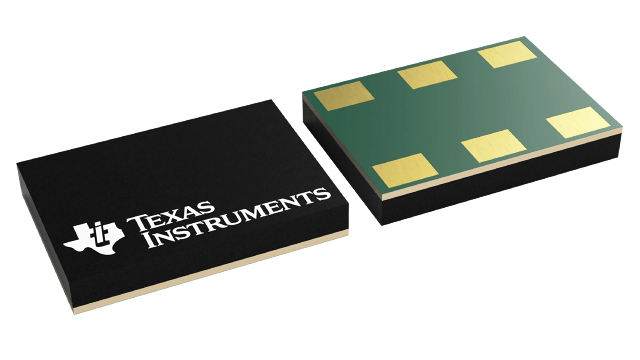

LMK61E2-156M25SIAT Texas Instruments - Yeehing Electronics
156.25-MHz, ±50 ppm, LVPECL ultra-low jitter standard differential oscillator
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 10.219 |
100 — 249 | 8.926 |
250 — 999 | 6.882 |
1,000 + | 4.31 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Standard Clock Oscillators |
RoHS | Y |
Product Type | Clock Oscillators |
Package / Case | QFM-6 |
Frequency | 156.25 MHz |
Frequency Stability | 50 PPM |
Operating Supply Voltage | 3.3 V |
Supply Voltage - Min | 3.135 V |
Supply Voltage - Max | 3.465 V |
Output Format | LVPECL |
Termination Style | SMD/SMT |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Length | 7 mm |
Width | 5 mm |
Height | 1.15 mm |
Series | LMK61E2-156M |
Packaging | Reel |
Current Rating | 162 mA |
Type | Clock Generators |
Brand | Texas Instruments |
Duty Cycle - Max | 55 % |
Mounting Style | SMD/SMT |
Moisture Sensitive | Yes |
Factory Pack Quantity | 250 |
Subcategory | Oscillators |
For more information, please refer to datasheet
Documents
LMK61E2-156M25SIAT Datasheet |
More Information
The LMK61XX is an ultra-low jitter oscillator that generates a commonly used reference clock. The device is pre-programmed in factory to support any reference clock frequency; supported output formats are LVPECL up to 1 GHz, LVDS up to 900 MHz, and HCSL up to 400 MHz. Internal power conditioning provide excellent power supply ripple rejection (PSRR), reducing the cost and complexity of the power delivery network. The device operates from a single 3.3 V ± 5% supply.
