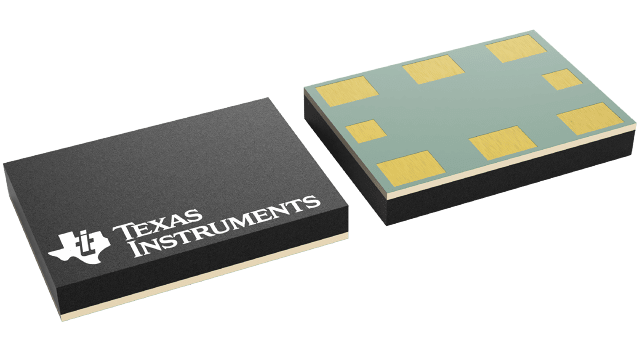

LMK61PD0A2-SIAT Texas Instruments - Yeehing Electronics
±50 ppm, ultra-low jitter, pin selectable, differential oscillator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 14.462 |
| 100 — 249 | 12.632 |
| 250 — 999 | 9.74 |
| 1,000 + | 6.10 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Programmable Oscillators |
| RoHS | Y |
| Package / Case | QFM-8 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | LMK61PD0A2 |
| Packaging | Reel |
| Features | Pin Selectable, 7x5mm |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Moisture Sensitive | Yes |
| Product Type | Programmable Oscillators |
| Factory Pack Quantity | 250 |
| Subcategory | Oscillators |
| Tradename | PLLatinum |
| Unit Weight | 0.006562 oz |
For more information, please refer to datasheet
Documents
| LMK61PD0A2-SIAT Datasheet |
More Information
The LMK61PD0A2 is an ultra-low jitter PLLatinum™ pin selectable oscillator that generates commonly used reference clocks. The device is pre-programmed in factory to support seven unique reference clock frequencies that can be selected by pin-strapping each of FS[1:0] to VDD, GND or NC (no connect). Output format is selected between LVPECL, LVDS, or HCSL by pin-strapping OS to VDD, GND or NC. Internal power conditioning provide excellent power supply ripple rejection (PSRR), reducing the cost and complexity of the power delivery network. The device operates from a single 3.3 V ± 5% supply.
