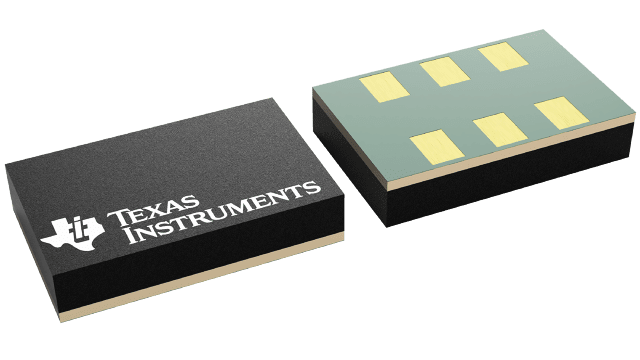

LMK62A2-100M00SIAT


YeeHing #: Y003-LMK62A2-100M00SIAT
Inventory: 4000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LMK62A2-100M00SIAT Texas Instruments - Yeehing Electronics

100-MHz, LVDS ±50 ppm, high-performance, low-jitter, standard oscillator

Pricing (USD)

Quantity Unit Price
1 — 99 9.462
100 — 249 8.265
250 — 999 6.373
1,000 + 3.99

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Standard Clock Oscillators
RoHS Y
Product Type Clock Oscillators
Package / Case QFM-6
Frequency 100 MHz
Frequency Stability 50 PPM
Load Capacitance 2 pF
Operating Supply Voltage 3.3 V
Supply Voltage - Min 3.135 V
Supply Voltage - Max 3.465 V
Output Format LVDS
Termination Style SMD/SMT
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Length 5 mm
Width 3.2 mm
Height 1.1 mm
Series LMK62XX
Packaging Reel
Current Rating 85 mA
Type High Performance Low Jitter Oscillator
Brand Texas Instruments
Duty Cycle - Max 55 %
Mounting Style SMD/SMT
Moisture Sensitive Yes
Factory Pack Quantity 250
Subcategory Oscillators

For more information, please refer to datasheet

Documents

LMK62A2-100M00SIAT Datasheet

More Information

The LMK62XX device is a low jitter oscillator that generates a commonly used reference clock. The device is pre-programmed in factory to support any reference clock frequency; supported output formats are LVPECL, LVDS and HCSL up to 400 MHz. Internal power conditioning provide excellent power supply ripple rejection (PSRR), reducing the cost and complexity of the power delivery network. The device operates from a single 3.3-V ±5% supply.
