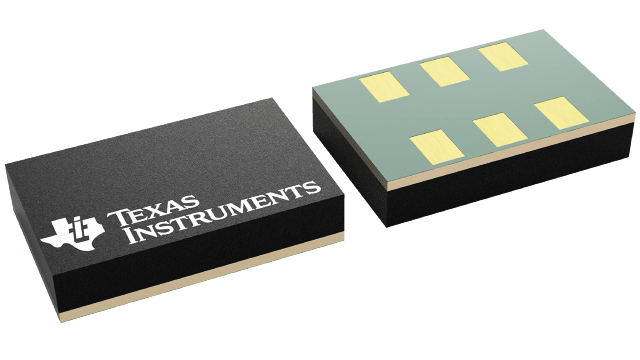

LMK62A2-200M00SIAT Texas Instruments - Yeehing Electronics
200-MHz, LVDS ±50 ppm, high-performance, low-jitter, standard oscillator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 9.462 |
| 100 — 249 | 8.265 |
| 250 — 999 | 6.373 |
| 1,000 + | 3.99 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Standard Clock Oscillators |
| RoHS | Y |
| Product Type | Clock Oscillators |
| Package / Case | QFM-6 |
| Frequency | 200 MHz |
| Frequency Stability | 50 PPM |
| Load Capacitance | 2 pF |
| Operating Supply Voltage | 3.3 V |
| Supply Voltage - Min | 3.135 V |
| Supply Voltage - Max | 3.465 V |
| Output Format | LVDS |
| Termination Style | SMD/SMT |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Length | 5 mm |
| Width | 3.2 mm |
| Height | 1.1 mm |
| Series | LMK62XX |
| Packaging | Reel |
| Current Rating | 85 mA |
| Type | High Performance Low Jitter Oscillator |
| Brand | Texas Instruments |
| Duty Cycle - Max | 55 % |
| Mounting Style | SMD/SMT |
| Moisture Sensitive | Yes |
| Factory Pack Quantity | 250 |
| Subcategory | Oscillators |
For more information, please refer to datasheet
Documents
| LMK62A2-200M00SIAT Datasheet |
More Information
The LMK62XX device is a low jitter oscillator that generates a commonly used reference clock. The device is pre-programmed in factory to support any reference clock frequency; supported output formats are LVPECL, LVDS and HCSL up to 400 MHz. Internal power conditioning provide excellent power supply ripple rejection (PSRR), reducing the cost and complexity of the power delivery network. The device operates from a single 3.3-V ±5% supply.
