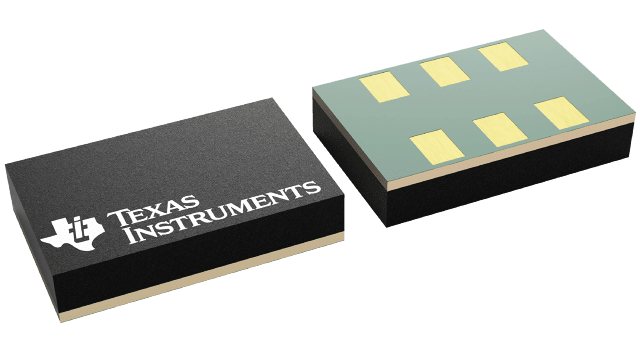

LMK62E0-156M25SIAT Texas Instruments - Yeehing Electronics

156.25-MHz, LVPECL, ±25 ppm, high-performance, low-jitter oscillator

Pricing (USD)

Quantity	Unit Price
1 — 99	10.408
100 — 249	9.092
250 — 999	7.01
1,000 +	4.39

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Standard Clock Oscillators
RoHS	Y
Product Type	Clock Oscillators
Package / Case	QFM-6
Frequency	156.25 MHz
Frequency Stability	25 PPM
Load Capacitance	2 pF
Operating Supply Voltage	3.3 V
Supply Voltage - Min	3.135 V
Supply Voltage - Max	3.465 V
Output Format	LVPECL
Termination Style	SMD/SMT
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	5 mm
Width	3.2 mm
Height	1.1 mm
Series	LMK62XX
Packaging	Reel
Current Rating	95 mA
Type	High Performance Low Jitter Oscillator
Brand	Texas Instruments
Duty Cycle - Max	55 %
Mounting Style	SMD/SMT
Moisture Sensitive	Yes
Factory Pack Quantity	250
Subcategory	Oscillators

For more information, please refer to datasheet

Documents

LMK62E0-156M25SIAT Datasheet

More Information

The LMK62XX device is a low jitter oscillator that generates a commonly used reference clock. The device is pre-programmed in factory to support any reference clock frequency; supported output formats are LVPECL, LVDS and HCSL up to 400 MHz. Internal power conditioning provide excellent power supply ripple rejection (PSRR), reducing the cost and complexity of the power delivery network. The device operates from a single 3.3-V ±5% supply.
