Texas Instruments

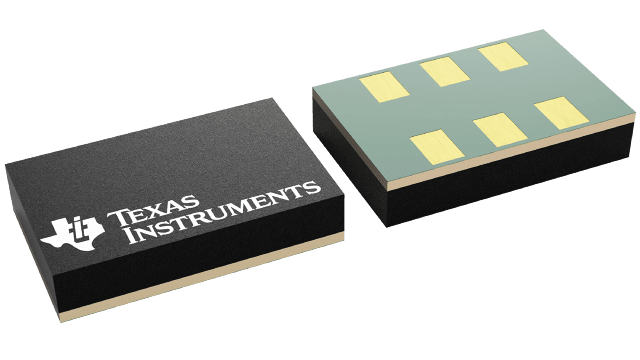

LMK62I0-100M00SIAR
LMK62I0-100M00SIAR
Regular price
$3.32 USD
Regular price
Sale price
$3.32 USD
Unit price
per
Couldn't load pickup availability
LMK62I0-100M00SIAR Texas Instruments - Yeehing Electronics
100-MHz, HCSL, ±25 ppm, high-performance, low-jitter oscillator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.74 |
| 100 — 249 | 7.125 |
| 250 — 999 | 5.6 |
| 1,000 + | 3.32 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Standard Clock Oscillators |
| Product Type | Clock Oscillators |
| Package / Case | QFM-6 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | LMK62I0-100M |
| Packaging | Reel |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Factory Pack Quantity | 2500 |
| Subcategory | Oscillators |
For more information, please refer to datasheet
Documents
| LMK62I0-100M00SIAR Datasheet |
More Information
The LMK62XX device is a low jitter oscillator that generates a commonly used reference clock. The device is pre-programmed in factory to support any reference clock frequency; supported output formats are LVPECL, LVDS and HCSL up to 400 MHz. Internal power conditioning provide excellent power supply ripple rejection (PSRR), reducing the cost and complexity of the power delivery network. The device operates from a single 3.3-V ±5% supply.
