LMP90079MH/NOPB


YeeHing #: Y004-LMP90079MH/NOPB
Inventory: 5000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

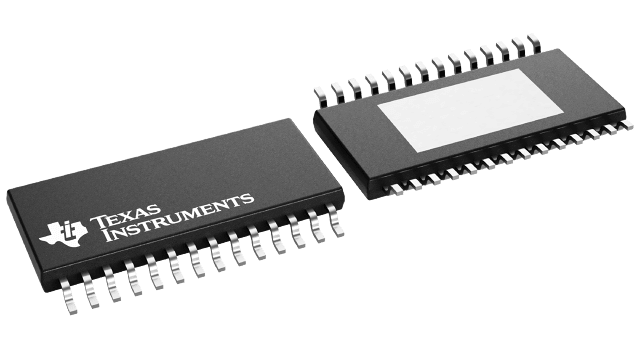

LMP90079MH/NOPB Texas Instruments - Yeehing Electronics

16-Bit, 214.6-SPS, 7-ch delta-sigma ADC for sensors

Pricing (USD)

Quantity Unit Price
1 — 99 10.046
100 — 249 8.19
250 — 999 6.437
1,000 + 3.82

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Analog to Digital Converters - ADC
RoHS Y
Series LMP90079
Mounting Style SMD/SMT
Package / Case HTSSOP-28
Resolution 16 bit
Number of Channels 7 Channel
Sampling Rate 214 S/s
Input Type Differential/Single-Ended
Interface Type SPI
Architecture Sigma-Delta
Reference Type External
Analog Supply Voltage 2.85 V to 5.5 V
Digital Supply Voltage 2.7 V to 5.5 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Packaging Tube
Features PGA
Power Consumption 1.2 mW
Brand Texas Instruments
Moisture Sensitive Yes
Number of ADC Inputs 7 Input
Operating Supply Voltage 2.85 V to 5.5 V
Product Type ADCs - Analog to Digital Converters
Factory Pack Quantity 48
Subcategory Data Converter ICs
Unit Weight 0.004233 oz

For more information, please refer to datasheet

Documents

LMP90079MH/NOPB Datasheet

More Information

The LLMP9007x and LMP90080 are highly integrated, multi-channel, low-power 16-bit Sensor AFEs. The devices feature a precision, 16-bit Sigma Delta Analog-to-Digital Converter (ADC) with a low-noise programmable gain amplifier and a fully differential high impedance analog input multiplexer. A true continuous background calibration feature allows calibration at all gains and output data rates without interrupting the signal path. The background calibration feature essentially eliminates gain and offset errors across temperature and time, providing measurement accuracy without sacrificing speed and power consumption.
