Texas Instruments

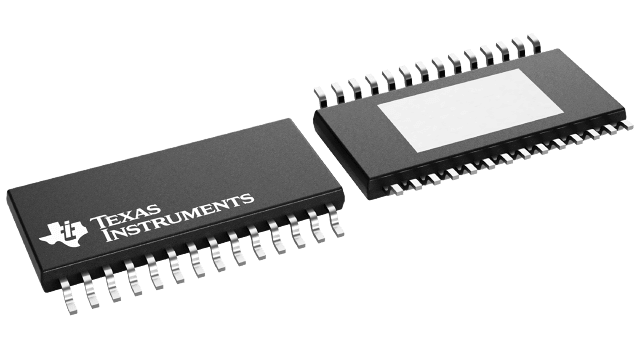

LMP90080QMHE/NOPB
LMP90080QMHE/NOPB
Couldn't load pickup availability
LMP90080QMHE/NOPB Texas Instruments - Yeehing Electronics
Automotive, Multi-Channel, Low-Power 16-Bit Sensor AFE with True Continuous Background Calibration
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 11.796 |
| 100 — 249 | 9.617 |
| 250 — 999 | 7.559 |
| 1,000 + | 4.49 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | LMP90080-Q1 |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-28 |
| Resolution | 16 bit |
| Number of Channels | 4 Channel/7 Channel |
| Sampling Rate | 214 S/s |
| Input Type | Differential |
| Interface Type | SPI |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Analog Supply Voltage | 2.85 V to 5.5 V |
| Digital Supply Voltage | 2.7 V to 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Packaging | Reel |
| Features | Excitation Current Sources (iDACs), PGA |
| Number of Converters | 7 Converter |
| Power Consumption | 1.2 mW |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Number of ADC Inputs | 7 Input |
| Operating Supply Voltage | 2.85 V to 5.5 V |
| Product Type | ADCs - Analog to Digital Converters |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.004233 oz |
For more information, please refer to datasheet
Documents
| LMP90080QMHE/NOPB Datasheet |
More Information
The LMP90080-Q1 is a highly integrated, multi-channel, low-power 16-bit Sensor AFE. The devices feature a precision, 16-bit Sigma Delta Analog-to-Digital Converter (ADC) with a low-noise programmable gain amplifier and a fully differential high impedance analog input multiplexer. A true continuous background calibration feature allows calibration at all gains and output data rates without interrupting the signal path. The background calibration feature essentially eliminates gain and offset errors across temperature and time, providing measurement accuracy without sacrificing speed and power consumption.
