Texas Instruments

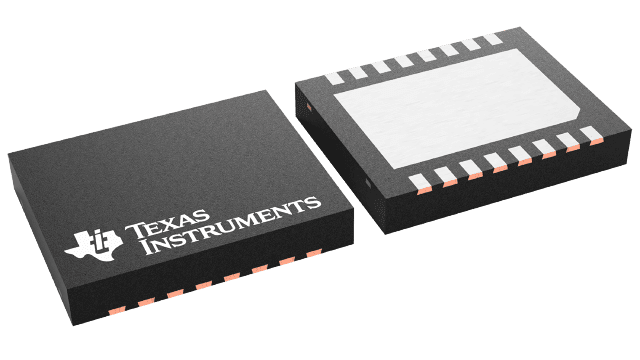

LMP92064SD/NOPB
LMP92064SD/NOPB
Regular price
$3.51 USD
Regular price
Sale price
$3.51 USD
Unit price
per
Couldn't load pickup availability
LMP92064SD/NOPB Texas Instruments - Yeehing Electronics
2V, 12-bit, fast simultaneous sampling SPI output current/voltage monitor
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 10.132 |
| 100 — 249 | 8.878 |
| 250 — 999 | 6.225 |
| 1,000 + | 3.51 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Data Acquisition ADCs/DACs - Specialized |
| RoHS | Y |
| Series | LMP92064 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-16 |
| Packaging | Reel |
| Features | Low-side Capable |
| Brand | Texas Instruments |
| Development Kit | LMP92064EVM |
| Moisture Sensitive | Yes |
| Product Type | Data Acquisition ADCs/DACs - Specialized |
| Factory Pack Quantity | 1000 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.001725 oz |
For more information, please refer to datasheet
Documents
| LMP92064SD/NOPB Datasheet |
More Information
The LMP92064 is a precision low-side digital current sensor and voltage monitor with a digital SPI interface. This analog frontend (AFE) includes a precision current sense amplifier to measure a load current across a shunt resistor and a buffered voltage channel to measure the voltage supply of the load. The current and voltage channels are sampled simultaneously by independent 125-kSps, 12-bit ADC converters, allowing for very accurate power calculations in unidirectional sensing applications.
