Texas Instruments
LMR12015XSDX/NOPB
LMR12015XSDX/NOPB
Regular price
$0.60 USD
Regular price
Sale price
$0.60 USD
Unit price
per
Couldn't load pickup availability
LMR12015XSDX/NOPB Texas Instruments - Yeehing Electronics

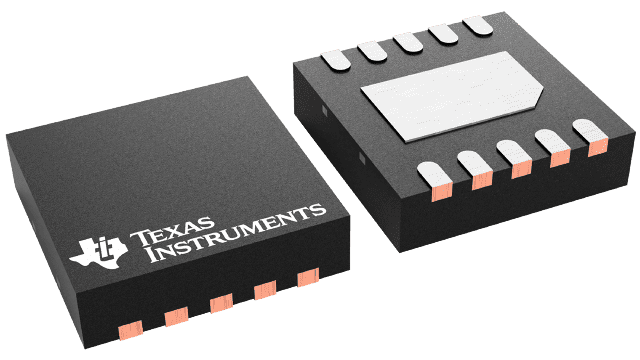

20Vin, 1.5A Step-Down Voltage Regulator in LLP-10
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.926 |
| 100 — 249 | 1.591 |
| 250 — 999 | 1.143 |
| 1,000 + | 0.60 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-10 |
| Output Voltage | 1 V to 18 V |
| Output Current | 1.5 A |
| Input Voltage MAX | 20 V |
| Topology | Buck |
| Input Voltage MIN | 3 V |
| Switching Frequency | 2 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | LMR12015 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Type | Step Down Regulator |
| Brand | Texas Instruments |
| Operating Supply Current | 2.4 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 4500 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| LMR12015XSDX/NOPB Datasheet |
More Information
The LMR120xx regulator is a monolithic, high frequency, PWM step-down DC/DC converter in a 10-pin WSON package. It contains all the active functions to provide local DC/DC conversion with fast transient response and accurate regulation in the smallest possible PCB area.
