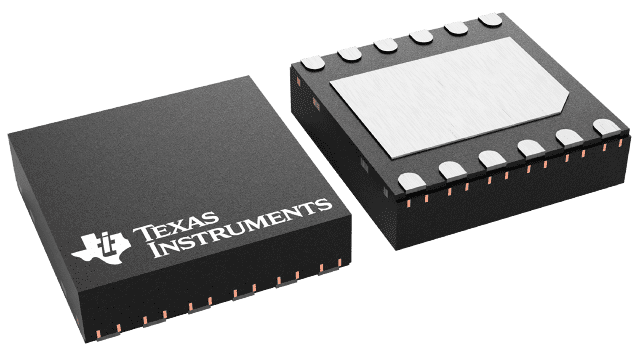

LMR23615QDRRRQ1 Texas Instruments - Yeehing Electronics
SIMPLE SWITCHER® 36-V, 1.5-A Synchronous Step-Down Converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.862 |
| 100 — 249 | 2.508 |
| 250 — 999 | 1.758 |
| 1,000 + | 0.99 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SON-12 |
| Output Voltage | 1 V to 28 V |
| Output Current | 1.5 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 36 V |
| Topology | Buck |
| Input Voltage MIN | 4 V |
| Switching Frequency | 200 kHz to 2.2 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | LMR23615-Q1 |
| Packaging | Reel |
| Input Voltage | 4 V to 36 V |
| Operating Temperature Range | - 40 C to + 125 C |
| Quiescent Current | 75 uA |
| Type | Synchronous Step-Down Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 4 V |
| Tradename | SIMPLE SWITCHER |
For more information, please refer to datasheet
Documents
| LMR23615QDRRRQ1 Datasheet |
More Information
The LMR23615-Q1 SIMPLE SWITCHER® is an easy-to-use 36 V, 1.5 A synchronous step-down regulator. With a wide input range from 4 V to 36 V, the device is suitable for various applications from industrial to automotive for power conditioning from unregulated sources. Peak-current-mode control is employed to achieve simple control loop compensation and cycle-by-cycle current limiting. A quiescent current of 75 µA makes it suitable for battery-powered systems. An ultra-low 2-µA shutdown current can further prolong battery life. Internal loop compensation means that the user is free from the tedious task of loop compensation design. This also minimizes the external components.
