Description

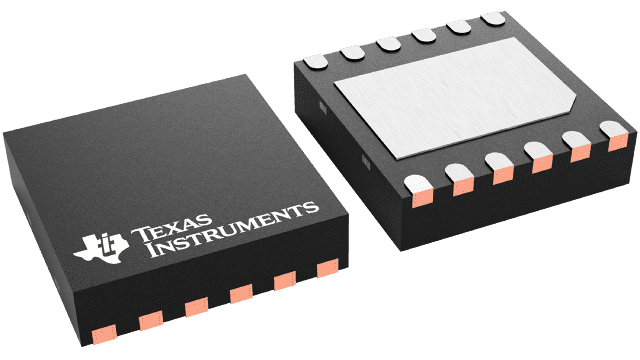

LMR23625CFPQDRRTQ1 Texas Instruments - Yeehing Electronics
Automotive Qualified SIMPLE SWITCHER®, 4V to 36V, 2.5A Synchronous Step-Down Converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.644 |
| 100 — 249 | 3.193 |
| 250 — 999 | 2.239 |
| 1,000 + | 1.44 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SON-12 |
| Output Voltage | 1 V to 28 V |
| Output Current | 2.5 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 36 V |
| Topology | Buck |
| Input Voltage MIN | 4 V |
| Switching Frequency | 2.1 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | LMR23625-Q1 |
| Packaging | Reel |
| Input Voltage | 4 V to 36 V |
| Operating Temperature Range | - 40 C to + 125 C |
| Quiescent Current | 75 uA |
| Type | Synchronous Step-Down Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 4 V |
| Tradename | SIMPLE SWITCHER |
For more information, please refer to datasheet
Documents
| LMR23625CFPQDRRTQ1 Datasheet |
More Information
The LMR23625-Q1 SIMPLE SWITCHER® is an easy-to-use 36-V, 2.5-A synchronous step down regulator. With a wide input range from 4 V to 36 V, the device is suitable for various applications from industrial to automotive for power conditioning from unregulated sources. Peak-current-mode control is employed to achieve simple control-loop compensation and cycle-by-cycle current limiting. A quiescent current of 75 µA makes it suitable for battery powered systems. Internal loop compensation means that the user is free from the tedious task of loop compensation design. This also minimizes the external components. The device has option for fixed-frequency, forced-pulse-width-modulation (FPWM) mode to achieve small output voltage ripple at light load. An extended family is available in 1-A (LMR23610-Q1), 1.5-A (LMR23615-Q1), and 3-A (LMR23630-Q1) load current options in pin-to-pin compatible packages, which allows simple, optimum PCB layout. A precision-enable input allows simplification of regulator control and system-power sequencing. Protection features include cycle-by-cycle current limit, hiccup-mode short-circuit protection and thermal shutdown due to excessive power dissipation.
