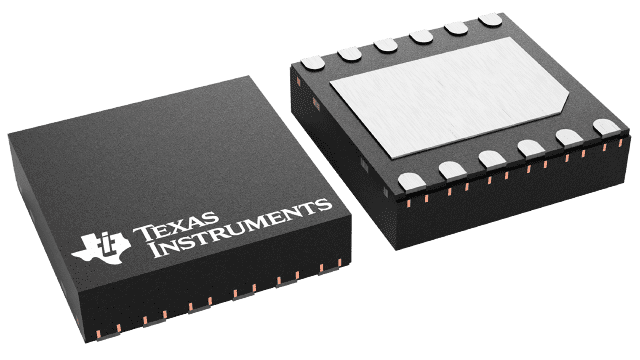

LMR23630FQDRRTQ1


YeeHing #: Y012-LMR23630FQDRRTQ1
Inventory: 3200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LMR23630FQDRRTQ1 Texas Instruments - Yeehing Electronics

Automotive Qualified SIMPLE SWITCHER® 4V to 36V,3A Synchronous Step-Down Converter

Pricing (USD)

Quantity Unit Price
1 — 99 4.215
100 — 249 3.437
250 — 999 2.701
1,000 + 1.60

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Switching Voltage Regulators
RoHS Y
Mounting Style SMD/SMT
Package / Case SON-12
Output Voltage 1 V to 28 V
Output Current 3 A
Number of Outputs 1 Output
Input Voltage MAX 36 V
Topology Buck
Input Voltage MIN 4 V
Switching Frequency 200 kHz to 2150 kHz
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Series LMR23630-Q1
Packaging Reel
Input Voltage 4 V to 36 V
Operating Temperature Range - 40 C to + 125 C
Quiescent Current 75 uA
Type Synchronous Step-Down Converter
Brand Texas Instruments
Shutdown Shutdown
Moisture Sensitive Yes
Product Type Switching Voltage Regulators
Factory Pack Quantity 250
Subcategory PMIC - Power Management ICs
Supply Voltage - Min 4 V
Tradename SIMPLE SWITCHER
Unit Weight 0.000614 oz

For more information, please refer to datasheet

Documents

LMR23630FQDRRTQ1 Datasheet

More Information

The LMR23630-Q1 SIMPLE SWITCHER® is an easy-to-use 36-V, 3-A synchronous step-down regulator. With a wide input range from 4 V to 36 V, the device is suitable for various applications from industrial to automotive for power conditioning from unregulated sources. Peak-current-mode control is employed to achieve simple control-loop compensation and cycle-by-cycle current limiting. A quiescent current of 75 µA makes it suitable for battery powered systems. Internal loop compensation means that the user is free from the tedious task of loop compensation design. This also minimizes the external components. The device has option for constant frequency FPWM mode to achieve small output voltage ripple at light load. An extended family is available in 1-A (LMR23610-Q1), 1.5-A (LMR23615-Q1), and 2.5-A (LMR23625-Q1) load current options in pin-to-pin compatible package which allows simple, optimum PCB layout. A precision enable input allows simplification of regulator control and system power sequencing. Protection features include cycle-by-cycle current limit, hiccup-mode short-circuit protection, and thermal shutdown due to excessive power dissipation.
