Texas Instruments
LMR24220TLX/NOPB
LMR24220TLX/NOPB
Regular price
$1.36 USD
Regular price
Sale price
$1.36 USD
Unit price
per
Couldn't load pickup availability

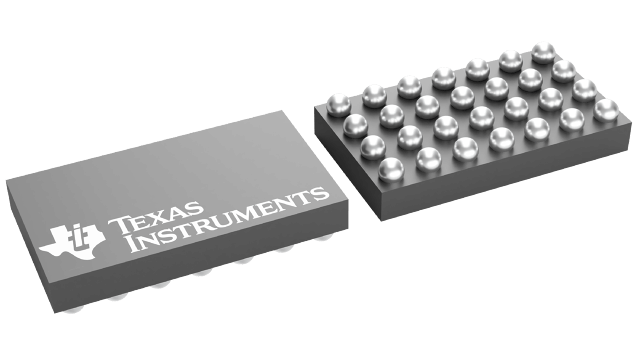

LMR24220TLX/NOPB Texas Instruments - Yeehing Electronics
42Vin, 2.0A Step-Down Voltage Regulator in micro SMD
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.562 |
| 100 — 249 | 2.904 |
| 250 — 999 | 2.283 |
| 1,000 + | 1.36 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-28 |
| Output Voltage | 800 mV to 24 V |
| Output Current | 2 A |
| Input Voltage MAX | 42 V |
| Topology | Buck |
| Input Voltage MIN | 4.5 V |
| Switching Frequency | 1 MHz |
| Minimum Operating Temperature | - 20 C |
| Maximum Operating Temperature | + 125 C |
| Series | LMR24220 |
| Packaging | Reel |
| Operating Temperature Range | - 20 C to + 125 C |
| Type | Step Down |
| Brand | Texas Instruments |
| Operating Supply Current | 700 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
| Tradename | Simple Switcher |
For more information, please refer to datasheet
Documents
| LMR24220TLX/NOPB Datasheet |
More Information
The LMR24220 synchronously rectified buck converter features all required functions to implement a highly efficient and cost effective buck regulator. It is capable of supplying 2-A to loads with an output voltage as low as 0.8 V. Dual N-channel synchronous MOSFET switches allow a low component count, thus reducing complexity and minimizing board size.
