LMR33620AQ5RNXTQ1 Texas Instruments - Yeehing Electronics

3.8-V to 36-V, 2-A synchronous step-down voltage converter

Pricing (USD)

Quantity	Unit Price
1 — 99	1.846
100 — 249	1.618
250 — 999	1.134
1,000 +	0.73

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
Mounting Style	SMD/SMT
Package / Case	VQFN-12
Output Voltage	5 V
Output Current	2 A
Number of Outputs	1 Output
Input Voltage MAX	36 V
Topology	Buck
Input Voltage MIN	3.8 V
Switching Frequency	400 kHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	LMR33620-Q1
Packaging	Reel
Input Voltage	3.8 V to 36 V
Quiescent Current	25 uA
Type	DC/DC Converter
Brand	Texas Instruments
Shutdown	Shutdown
Operating Supply Current	3.5 A
Product Type	Switching Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	3.8 V

For more information, please refer to datasheet

Documents

LMR33620AQ5RNXTQ1 Datasheet

More Information

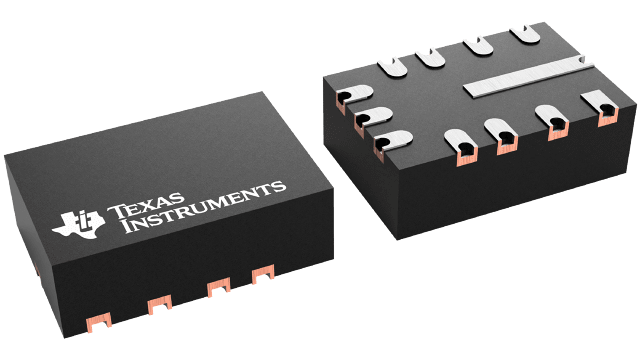

The LMR33620-Q1 automotive-qualified regulator is an easy-to-use, synchronous, step-down DC/DC converter that delivers best-in-class efficiency for rugged applications. The LMR33620-Q1 drives up to 2 A of load current from an input of up to 36 V. The LMR33620-Q1 provides high light load efficiency and output accuracy in a very small solution size. Features such as a power-good flag and precision enable provide both flexible and easy-to-use solutions for a wide range of applications. The LMR33620-Q1 automatically folds back frequency at light load to improve efficiency. Integration eliminates most external components and provides a pinout designed for simple PCB layout. Protection features include thermal shutdown, input undervoltage lockout, cycle-by-cycle current limit, and hiccup short-circuit protection. The LMR33620-Q1 is available in a 12-pin 3 mm × 2 mm next generation VQFN package with wettable flanks.
