LMR33620BRNXR Texas Instruments - Yeehing Electronics

SIMPLE SWITCHER® 3.8V to 36V, 2A Synchronous Buck Converter With Ultra-Low EMI

Pricing (USD)

Quantity	Unit Price
1 — 99	1.193
100 — 249	0.918
250 — 999	0.676
1,000 +	0.34

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT

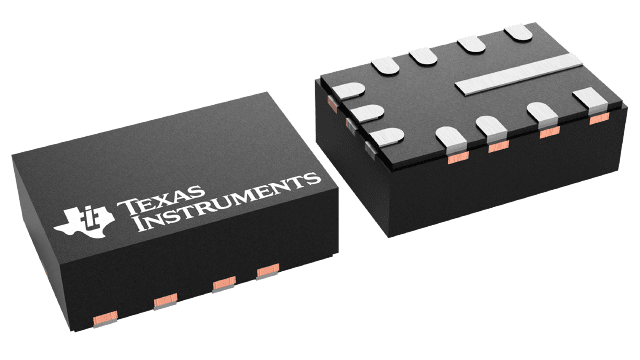

Package / Case	VQFN-12
Output Voltage	1 V to 24 V
Output Current	2 A
Number of Outputs	1 Output
Input Voltage MAX	36 V
Topology	Buck
Input Voltage MIN	3.8 V
Switching Frequency	1.4 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	LMR33620
Packaging	Reel
Input Voltage	3.8 V to 36 V
Operating Temperature Range	- 40 C to + 125 C
Quiescent Current	25 uA
Type	Synchronous Step-Down Voltage Converter
Brand	Texas Instruments
Shutdown	Shutdown
Product Type	Switching Voltage Regulators
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	3.8 V
Tradename	SIMPLE SWITCHER

For more information, please refer to datasheet

Documents

LMR33620BRNXR Datasheet

More Information

The LMR33620 SIMPLE SWITCHER regulator is an easy-to-use, synchronous, step-down DC/DC converter that delivers best-in-class efficiency for rugged industrial applications. The LMR33620 drives up to 2 A of load current from an input of up to 36 V. The LMR33620 provides high light load efficiency and output accuracy in a very small solution size. Features such as a power-good flag and precision enable provide both flexible and easy-to-use solutions for a wide range of applications. The LMR33620 automatically folds back frequency at light load to improve efficiency. Integration eliminates most external components and provides a pinout designed for simple PCB layout. Protection features include thermal shutdown, input undervoltage lockout, cycle-by-cycle current limit, and hiccup short-circuit protection. The LMR33620 is available in an 8-pin HSOIC package and in a 12-pin 3 mm × 2 mm next generation VQFN package with wettable flanks. This device is also available in an AEC-Q100-qualified version.
