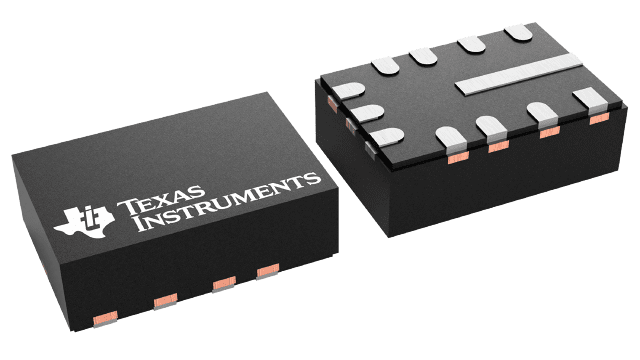

LMR33620CQ5RNXTQ1


YeeHing #: Y012-LMR33620CQ5RNXTQ1
Inventory: 7600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LMR33620CQ5RNXTQ1 Texas Instruments - Yeehing Electronics

3.8-V to 36-V, 2-A synchronous step-down voltage converter

Pricing (USD)

Quantity Unit Price
1 — 99 2.11
100 — 249 1.743
250 — 999 1.252
1,000 + 0.54

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Switching Voltage Regulators
RoHS Y
Mounting Style SMD/SMT
Package / Case VQFN-12
Output Voltage 5 V
Output Current 2 A
Number of Outputs 1 Output
Input Voltage MAX 36 V
Topology Buck
Input Voltage MIN 3.8 V
Switching Frequency 2100 kHz
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Series LMR33620-Q1
Packaging Reel
Input Voltage 3.8 V to 36 V
Operating Temperature Range - 40 C to + 125 C
Quiescent Current 25 uA
Type DC/DC Converter
Brand Texas Instruments
Shutdown Shutdown
Moisture Sensitive Yes
Product Type Switching Voltage Regulators
Factory Pack Quantity 250
Subcategory PMIC - Power Management ICs
Supply Voltage - Min 3.8 V

For more information, please refer to datasheet

Documents

LMR33620CQ5RNXTQ1 Datasheet

More Information

The LMR33620-Q1 automotive-qualified regulator is an easy-to-use, synchronous, step-down DC/DC converter that delivers best-in-class efficiency for rugged applications. The LMR33620-Q1 drives up to 2 A of load current from an input of up to 36 V. The LMR33620-Q1 provides high light load efficiency and output accuracy in a very small solution size. Features such as a power-good flag and precision enable provide both flexible and easy-to-use solutions for a wide range of applications. The LMR33620-Q1 automatically folds back frequency at light load to improve efficiency. Integration eliminates most external components and provides a pinout designed for simple PCB layout. Protection features include thermal shutdown, input undervoltage lockout, cycle-by-cycle current limit, and hiccup short-circuit protection. The LMR33620-Q1 is available in a 12-pin 3 mm × 2 mm next generation VQFN package with wettable flanks.
