Texas Instruments

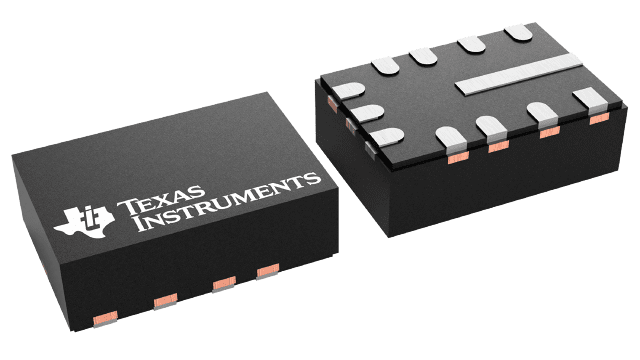

LMR36006AQRNXTQ1
LMR36006AQRNXTQ1
Regular price
$0.71 USD
Regular price
Sale price
$0.71 USD
Unit price
per
Couldn't load pickup availability
LMR36006AQRNXTQ1 Texas Instruments - Yeehing Electronics
4.2-V to 60-V, 0.6-A ultra-small synchronous step-down converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.048 |
| 100 — 249 | 1.795 |
| 250 — 999 | 1.258 |
| 1,000 + | 0.71 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-HR-12 |
| Output Voltage | 3.3 V |
| Output Current | 600 mA |
| Number of Outputs | 3 Output |
| Input Voltage MAX | 66 V |
| Input Voltage MIN | 4.2 V |
| Switching Frequency | 400 kHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | LMR36006-Q1 |
| Packaging | Reel |
| Input Voltage | 4.2 V to 60 V |
| Quiescent Current | 26 uA |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Load Regulation | Regulated |
| Moisture Sensitive | Yes |
| Operating Supply Current | 600 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 0 V |
For more information, please refer to datasheet
Documents
| LMR36006AQRNXTQ1 Datasheet |
More Information
The LMR36006-Q1 regulator is an easy-to-use, synchronous, step-down DC/DC converter. With integrated high-side and low-side power MOSFETs, up to 0.6 A of output current is delivered over a wide input voltage range of 4.2 V to 60 V. Tolerance goes up to 66 V.
