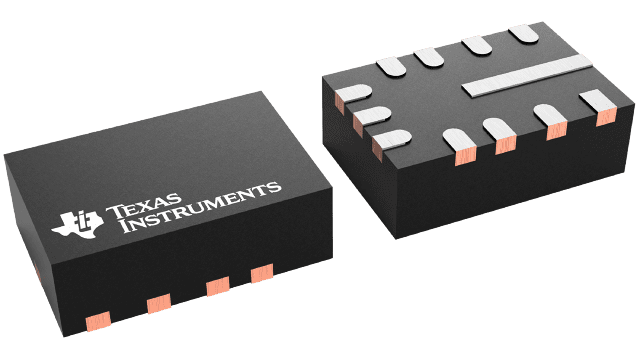

LMR36006BRNXR Texas Instruments - Yeehing Electronics

4.2-V to 60-V, 0.6-A ultra-small synchronous step-down converter

Pricing (USD)

Quantity	Unit Price
1 — 99	1.485
100 — 249	1.301
250 — 999	0.912
1,000 +	0.51

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	VQFN-12
Output Voltage	Adjustable
Output Current	600 mA
Number of Outputs	1 Output
Input Voltage MAX	60 V
Topology	Buck
Input Voltage MIN	4.2 V
Switching Frequency	1 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 150 C
Series	LMR36006
Packaging	Reel
Input Voltage	4.2 V to 60 V
Operating Temperature Range	- 40 C to + 150 C
Type	Ultra Small Synchronous
Brand	Texas Instruments
Shutdown	Shutdown
Moisture Sensitive	Yes
Product Type	Switching Voltage Regulators
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	4.2 V

For more information, please refer to datasheet

Documents

LMR36006BRNXR Datasheet

More Information

The LMR36006 regulator is an easy-to-use, synchronous, step-down DC/DC converter. With integrated high-side and low-side power MOSFETs, up to 0.6 A of output current is delivered over a wide input voltage range of 4.2 V to 60 V. Tolerance goes up to 66 V. The transient tolerance reduces the necessary design effort to protect against overvoltages and meets the surge immunity requirements of IEC 61000-4-5.
