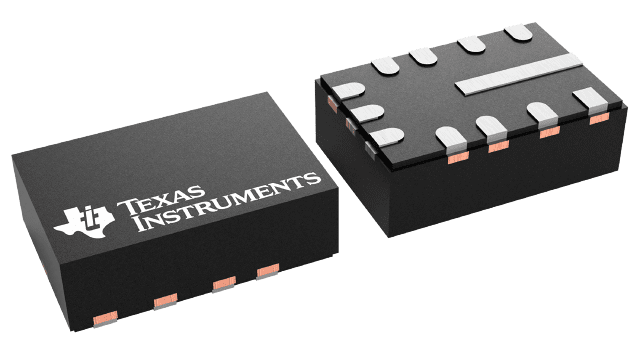

LMR36015AQRNXRQ1 Texas Instruments - Yeehing Electronics
4.2-V to 60-V, 1.5-A ultra-small synchronous step-down converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.002 |
| 100 — 249 | 1.754 |
| 250 — 999 | 1.23 |
| 1,000 + | 2.57 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-12 |
| Output Voltage | Adjustable |
| Output Current | 1.5 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 60 V |
| Topology | Buck |
| Input Voltage MIN | 4.2 V |
| Switching Frequency | 400 kHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Series | LMR36015-Q1 |
| Packaging | Reel |
| Input Voltage | 4.2 V to 60 V |
| Operating Temperature Range | - 40 C to + 150 C |
| Type | Ultra Small Synchronous |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 4.2 V |
For more information, please refer to datasheet
Documents
| LMR36015AQRNXRQ1 Datasheet |
More Information
The LMR36015-Q1 regulator is an easy-to-use, synchronous, step-down DC/DC converter. With integrated high-side and low-side power MOSFETs, up to 1.5 A of output current is delivered over a wide input voltage range of 4.2 V to 60 V. Tolerance goes up to 66 V.
