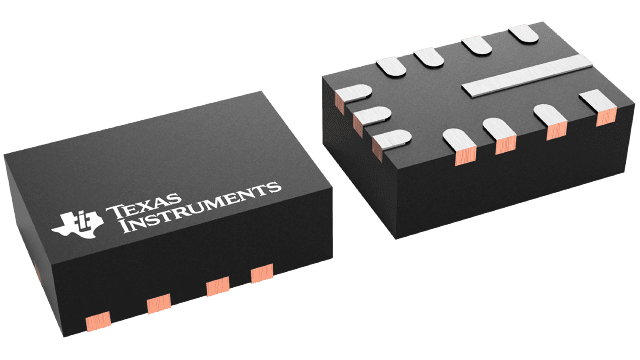

LMR36015BRNXR Texas Instruments - Yeehing Electronics

4.2-V to 60-V, 1.5-A ultra-small synchronous step-down converter

Pricing (USD)

Quantity	Unit Price
1 — 99	1.697
100 — 249	1.487
250 — 999	1.042
1,000 +	2.74

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	VQFN-HR-12
Output Voltage	0 V to 5 V
Output Current	1.5 A
Number of Outputs	2 Output
Input Voltage MAX	60 V
Topology	Buck
Input Voltage MIN	4.2 V
Switching Frequency	400 kHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 150 C
Series	LMR36015
Packaging	Reel
Input Voltage	4.2 V to 66 V
Quiescent Current	26 uA
Type	Step-Down Converter
Brand	Texas Instruments
Shutdown	Shutdown
Load Regulation	Regulated
Operating Supply Current	26 uA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	0 V

For more information, please refer to datasheet

Documents

LMR36015BRNXR Datasheet

More Information

The LMR36015 regulator is an easy-to-use, synchronous, step-down DC/DC converter. With integrated high-side and low-side power MOSFETs, up to 1.5 A of output current is delivered over a wide input voltage range of 4.2 V to 60 V. Tolerance goes up to 66 V. The transient tolerance reduces the necessary design effort to protect against overvoltages and meets the surge immunity requirements of IEC 61000-4-5.
