Description

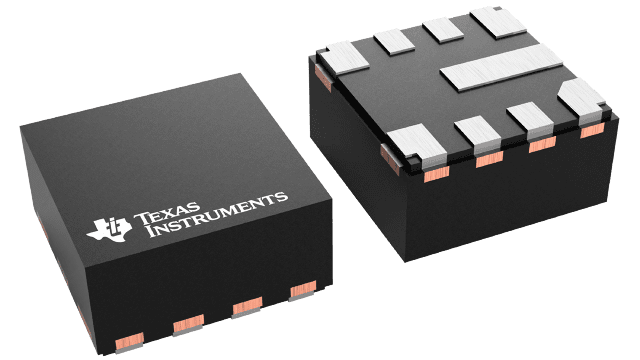

LMR36503RFRPER Texas Instruments - Yeehing Electronics
3-V to 65-V, 0.3-A ultra-small synchronous buck converter with 6 μA IQ
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.784 |
| 100 — 249 | 2.439 |
| 250 — 999 | 1.71 |
| 1,000 + | 0.96 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| LMR36503RFRPER Datasheet |
More Information
The LMR36503 is the industry smallest 65 V, 0.3 A synchronous step-down DC/DC converter in 2-mm × 2-mm HotRod package. This easy-to-use converter can handle input voltage transients up to 70 V, provide excellent EMI performance and support fixed 5 V and other adjustable output voltages. The transient tolerance reduces the necessary design effort to protect against input overvoltage and meets the surge immunity requirements of IEC 61000-4-5.
