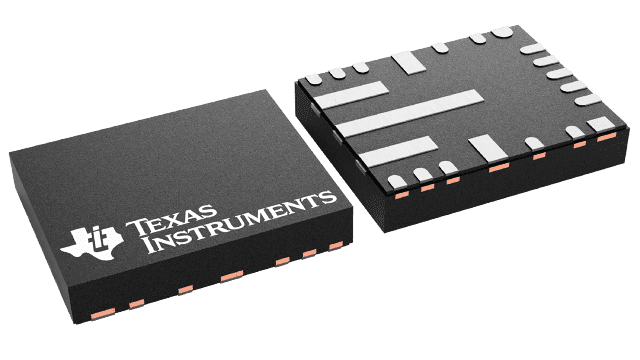

LMS36355QRNLTQ1 Texas Instruments - Yeehing Electronics

3.5-A, 36-V synchronous, 400-kHz, step-down converter

Pricing (USD)

Quantity	Unit Price
1 — 99	4.749
100 — 249	3.872
250 — 999	3.043
1,000 +	1.81

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	VQFN-HR-22
Output Voltage	5 V
Output Current	3.5 A
Number of Outputs	1 Output
Input Voltage MAX	36 V
Topology	Buck
Input Voltage MIN	3.9 V
Switching Frequency	400 kHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 150 C
Series	LMS3635-Q1
Packaging	Reel
Input Voltage	3.9 V to 36 V
Operating Temperature Range	- 40 C to + 150 C
Quiescent Current	7.5 uA
Type	Step-Down Converter
Brand	Texas Instruments
Shutdown	Shutdown
Development Kit	LMS3635MQEVM
Moisture Sensitive	Yes
Product Type	Switching Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	3.9 V
Unit Weight	0.001753 oz

For more information, please refer to datasheet

Documents

LMS36355QRNLTQ1 Datasheet

More Information

The LMS3635-Q1 and LMS3655-Q1 synchronous buck regulators are optimized for high performance applications, providing an output voltage of 3.3 V, 5 V, or an adjustable output of 1 V to 20 V. Seamless transition between PWM and PFM modes, along with a low quiescent current, ensures high efficiency and superior transient responses at all loads.
