Texas Instruments
LMS36555QRNLRQ1
LMS36555QRNLRQ1
Regular price
$1.91 USD
Regular price
Sale price
$1.91 USD
Unit price
per
Couldn't load pickup availability

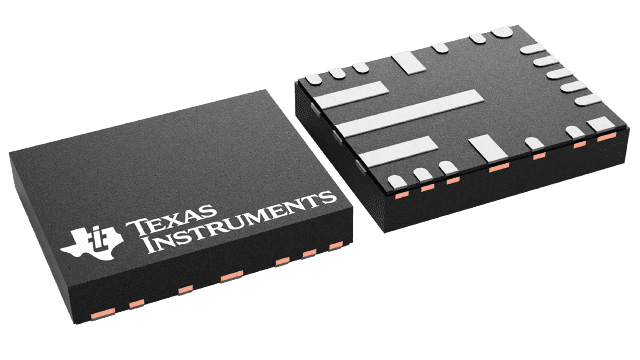

LMS36555QRNLRQ1 Texas Instruments - Yeehing Electronics
5.5-A, 36-V synchronous, 400-kHz, step-down converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.016 |
| 100 — 249 | 4.089 |
| 250 — 999 | 3.214 |
| 1,000 + | 1.91 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-HR-22 |
| Output Voltage | 5 V |
| Output Current | 5.5 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 36 V |
| Topology | Buck |
| Input Voltage MIN | 3.9 V |
| Switching Frequency | 400 kHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Series | LMS3655-Q1 |
| Packaging | Reel |
| Input Voltage | 3.9 V to 36 V |
| Operating Temperature Range | - 40 C to + 150 C |
| Quiescent Current | 7.5 uA |
| Type | Step-Down Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 3.9 V |
For more information, please refer to datasheet
Documents
| LMS36555QRNLRQ1 Datasheet |
More Information
The LMS3635-Q1 and LMS3655-Q1 synchronous buck regulators are optimized for high performance applications, providing an output voltage of 3.3 V, 5 V, or an adjustable output of 1 V to 20 V. Seamless transition between PWM and PFM modes, along with a low quiescent current, ensures high efficiency and superior transient responses at all loads.
