Texas Instruments
LMS3655MMRNLR
LMS3655MMRNLR
Regular price
$6.86 USD
Regular price
Sale price
$6.86 USD
Unit price
per
Couldn't load pickup availability
LMS3655MMRNLR Texas Instruments - Yeehing Electronics
5.5A, 36V Synchronous, 400kHz, Step-Down Converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.25 |
| 100 — 249 | 3.465 |
| 250 — 999 | 2.723 |
| 1,000 + | 6.86 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |

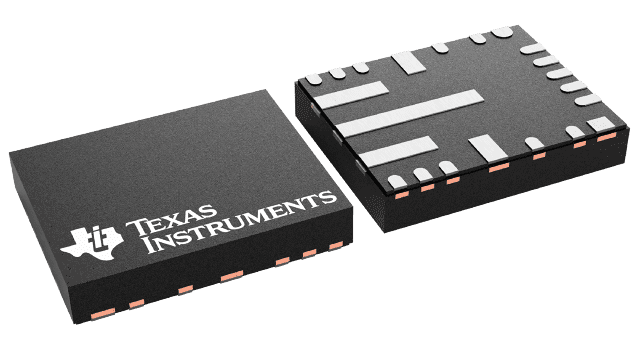

| Package / Case | VQFN-HR-22 |
| Output Voltage | 1 V to 15 V |
| Output Current | 5.5 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 36 V |
| Topology | Buck |
| Input Voltage MIN | 3.9 V |
| Switching Frequency | 400 kHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | LMS3655 |
| Packaging | Reel |
| Input Voltage | 3.9 V to 36 V |
| Operating Temperature Range | - 40 C to + 125 C |
| Quiescent Current | 7.5 uA |
| Type | Step-Down Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Development Kit | LMS3655MQEVM |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 3.9 V |
| Unit Weight | 0.001753 oz |
For more information, please refer to datasheet
Documents
| LMS3655MMRNLR Datasheet |
More Information
The LMS3655 synchronous buck regulators are optimized for high performance applications, providing an adjustable output of 1 V to 20 V. Seamless transition between PWM and PFM modes, along with a low quiescent current, ensures high efficiency and superior transient responses at all loads.
