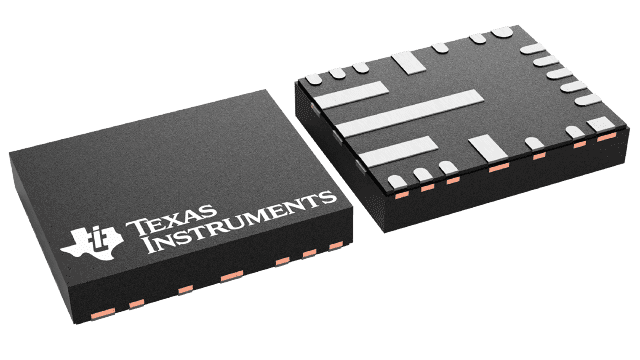

LMS3655MQRNLTQ1


YeeHing #: Y012-LMS3655MQRNLTQ1
Inventory: 3200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LMS3655MQRNLTQ1 Texas Instruments - Yeehing Electronics

5.5-A, 36-V synchronous, 400-kHz, step-down converter

Pricing (USD)

Quantity Unit Price
1 — 99 5.866
100 — 249 4.782
250 — 999 3.759
1,000 + 2.55

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Switching Voltage Regulators
RoHS Y
Mounting Style SMD/SMT
Package / Case VQFN-HR-22
Output Voltage 1 V to 15 V
Output Current 5.5 A
Number of Outputs 1 Output
Input Voltage MAX 36 V
Topology Buck
Input Voltage MIN 3.9 V
Switching Frequency 400 kHz
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 150 C
Series LMS3655-Q1
Packaging Reel
Input Voltage 3.9 V to 36 V
Operating Temperature Range - 40 C to + 150 C
Quiescent Current 7.5 uA
Type Step-Down Converter
Brand Texas Instruments
Shutdown Shutdown
Development Kit LMS3655AQEVM
Moisture Sensitive Yes
Product Type Switching Voltage Regulators
Factory Pack Quantity 250
Subcategory PMIC - Power Management ICs
Supply Voltage - Min 3.9 V
Unit Weight 0.001753 oz

For more information, please refer to datasheet

Documents

LMS3655MQRNLTQ1 Datasheet

More Information

The LMS3635-Q1 and LMS3655-Q1 synchronous buck regulators are optimized for high performance applications, providing an output voltage of 3.3 V, 5 V, or an adjustable output of 1 V to 20 V. Seamless transition between PWM and PFM modes, along with a low quiescent current, ensures high efficiency and superior transient responses at all loads.
