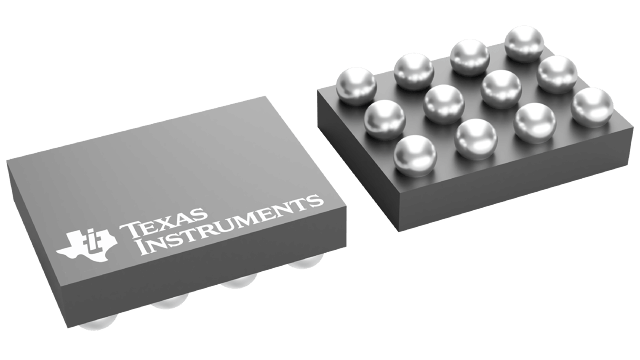

Texas Instruments
LMS4684ITLX/NOPB
LMS4684ITLX/NOPB
Regular price
$0.26 USD
Regular price
Sale price
$0.26 USD
Unit price
per
Couldn't load pickup availability
LMS4684ITLX/NOPB Texas Instruments - Yeehing Electronics
0.5-Ω on-state resistance, 5-V, 2:1 (SPDT), 2-channel analog switch with 1.8-V input logic
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.824 |
| 100 — 249 | 0.681 |
| 250 — 999 | 0.489 |
| 1,000 + | 0.26 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Switch ICs |
| RoHS | Y |
| Number of Switches | 2 Switch |
| Configuration | 2 x SPDT |
| On Resistance - Max | 500 mOhms, 800 mOhms |
| Switch Voltage - Max | 3.3 V |
| On Time - Max | 60 ns |
| Off Time - Max | 40 ns |
| Operating Supply Voltage | 1.8 V to 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-12 |
| Packaging | Reel |
| Height | 0.36 mm |
| Length | 2.33 mm |
| Series | LMS4684 |
| Supply Type | Single Supply |
| Width | 1.59 mm |
| Brand | Texas Instruments |
| Supply Current - Max | 0.005 uA |
| Product Type | Analog Switch ICs |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 1.8 V |
| Switch Continuous Current | 400 mA |
For more information, please refer to datasheet
Documents
| LMS4684ITLX/NOPB Datasheet |
More Information
The LMS4684 is a low on-resistance, low voltage dual SPDT (Single-Pole/Double-Throw) analog switch that operates from a 1.8V to 5.5V supply. The LMS4684 features a 0.5Ω RON for its NC switch and 0.8Ω RON for its NO switch at a 2.7V supply. The digital logic inputs are 1.8V logic-compatible with a 2.7V to 3.3V supply and features break-before-make switching action.
