Description

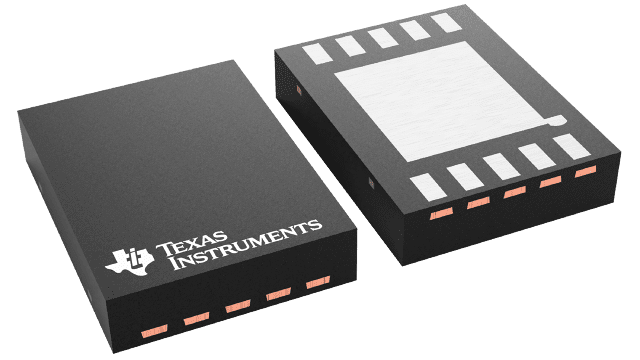

LMS4684LD/NOPB Texas Instruments - Yeehing Electronics
0.5-Ω on-state resistance, 5-V, 2:1 (SPDT), 2-channel analog switch with 1.8-V input logic
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.824 |
100 — 249 | 0.681 |
250 — 999 | 0.489 |
1,000 + | 0.26 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Analog Switch ICs |
RoHS | Y |
Number of Switches | 2 Switch |
Configuration | 2 x SPDT |
On Resistance - Max | 500 mOhms, 800 mOhms |
Switch Voltage - Max | 3.3 V |
On Time - Max | 60 ns |
Off Time - Max | 40 ns |
Operating Supply Voltage | 1.8 V to 5.5 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | WSON-10 |
Packaging | Reel |
Height | 0.8 mm |
Length | 3 mm |
Series | LMS4684 |
Supply Type | Single Supply |
Width | 4 mm |
Brand | Texas Instruments |
Supply Current - Max | 0.005 uA |
Moisture Sensitive | Yes |
Product Type | Analog Switch ICs |
Factory Pack Quantity | 1000 |
Subcategory | Switch ICs |
Supply Voltage - Max | 5.5 V |
Supply Voltage - Min | 1.8 V |
Switch Continuous Current | 400 mA |
Unit Weight | 0.000945 oz |
For more information, please refer to datasheet
Documents
LMS4684LD/NOPB Datasheet |
More Information
The LMS4684 is a low on-resistance, low voltage dual SPDT (Single-Pole/Double-Throw) analog switch that operates from a 1.8V to 5.5V supply. The LMS4684 features a 0.5Ω RON for its NC switch and 0.8Ω RON for its NO switch at a 2.7V supply. The digital logic inputs are 1.8V logic-compatible with a 2.7V to 3.3V supply and features break-before-make switching action.
