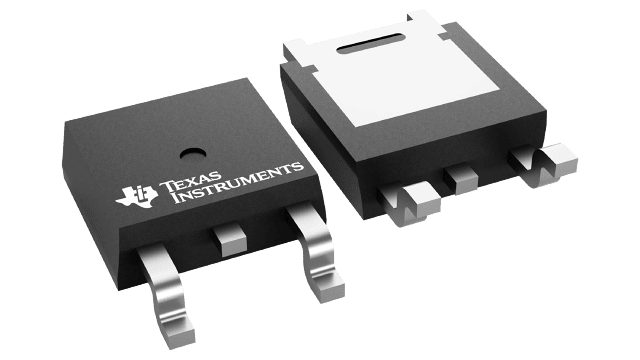

LMS8117ADT-ADJ/NOPB Texas Instruments - Yeehing Electronics

1-A, 15-V, linear voltage regulator from 0°C to 125°C

Pricing (USD)

Quantity	Unit Price
1 — 99	1.178
100 — 249	0.973
250 — 999	0.699
1,000 +	0.37

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	TO-252-3
Output Voltage	1.25 V to 13.8 V
Output Current	1 A
Number of Outputs	1 Output
Polarity	Positive
Input Voltage MAX	15 V
Input Voltage MIN	2.5 V
Output Type	Adjustable
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 125 C
Dropout Voltage	1.2 V
Series	LMS8117A
Packaging	Tube
Operating Temperature Range	0 C to + 125 C
Product	LDO Linear Regulators
Type	Low Dropout Voltage
Brand	Texas Instruments
Dropout Voltage - Max	1.15 V at 100 mA, 1.2 V at 500 mA, 1.25 V at 1 A
PSRR / Ripple Rejection - Typ	75 dB
Voltage Regulation Accuracy	+/- 1 %
Line Regulation	0.035 %
Load Regulation	0.2 %
Moisture Sensitive	Yes
Operating Supply Current	5 mA
Product Type	LDO Voltage Regulators
Reference Voltage	1.262 V
Factory Pack Quantity	75
Subcategory	PMIC - Power Management ICs
Unit Weight	0.139332 oz

For more information, please refer to datasheet

Documents

LMS8117ADT-ADJ/NOPB Datasheet

More Information

The LMS8117A device is a series of low-dropout voltage regulators with a dropout of 1.2 V at 1 A of load current. The device has the same pinout as the LM317.
