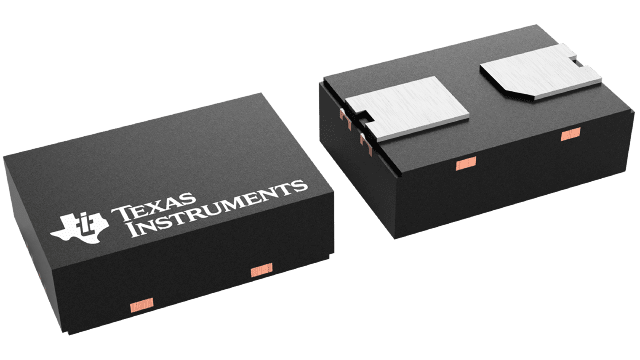

LMT01DQXR Texas Instruments - Yeehing Electronics
0.5°C Accurate 2-pin Temperature Sensor with a Pulse Train Interface
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.79 |
100 — 249 | 1.478 |
250 — 999 | 1.062 |
1,000 + | 0.56 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Board Mount Temperature Sensors |
RoHS | Y |
Output Type | Digital |
Configuration | Local |
Accuracy | +/- 0.5 C |
Supply Voltage - Min | 2 V |
Supply Voltage - Max | 5.5 V |
Interface Type | 1-Wire |
Resolution | 13 bit |
Minimum Operating Temperature | - 50 C |
Maximum Operating Temperature | + 150 C |
Shutdown | No Shutdown |
Package / Case | WSON-2 |
Product | Digital Output Temperature Sensors |
Packaging | Reel |
Series | LMT01 |
Brand | Texas Instruments |
Operating Supply Current | 34 uA |
Product Type | Temperature Sensors |
Factory Pack Quantity | 3000 |
Subcategory | Sensors |
For more information, please refer to datasheet
Documents
LMT01DQXR Datasheet |
More Information
The LMT01 device is a high-accuracy, 2-pin temperature sensor with an easy-to-use pulse count current loop interface, which makes it suitable for onboard and offboard applications in automotive, industrial, and consumer markets. The LMT01 digital pulse count output and high accuracy over a wide temperature range allow pairing with any MCU without concern for integrated ADC quality or availability, while minimizing software overhead. TI’s LMT01 device achieves a maximum ±0.5°C accuracy with very fine resolution (0.0625°C) over a temperature range of –20°C to 90°C without system calibration or hardware and software compensation.
